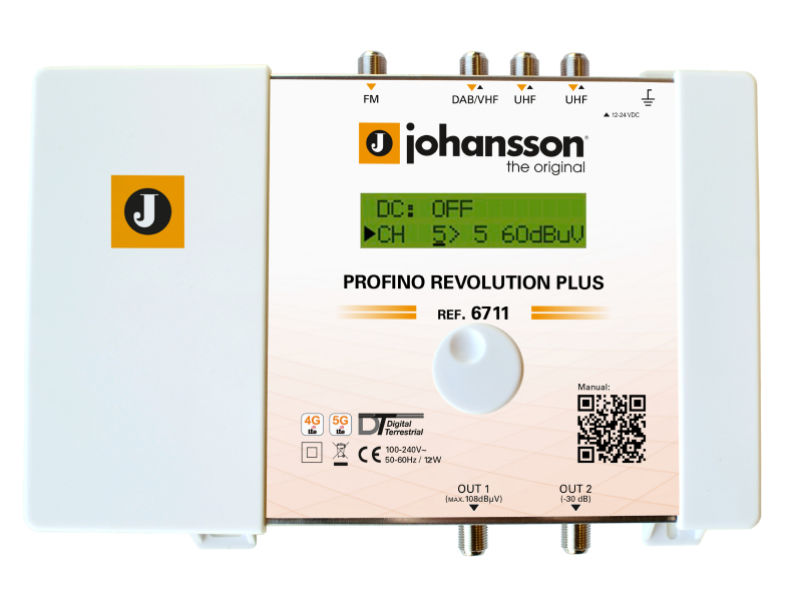

JOHANSSON Amplifier PROFINO REVOLUTION +

Programmable terrestrial filter amplifier: 4 inputs: 1 FM + 1 DAB/VHF + 2 UHF / 20 Muxes / AGC / 12-24 V remote power. The Profino Revolution Plus is a light version digital Profiler. The 6711 has 1 FM, 1 DAB/VHF and 2 UHF inputs. > 50 Channels can be filtered, amplified and converted. The filters on adjacent channels are extremely sharp.Main features:Read-out of input level strength: no need for field strength meterCan process up to 20 channelsSharpest filters on the market (50dB on adjacent channels)Real-time AGC on all individual multiplexesFlex Matrix: complete flexibility in assigning filters from any inputEasy to installRED compliant(selectivity classification 0 – 1 – 2 – 3 – 4)Equalize and optimize terrestrial signals for your optical installation (70 dBµV output power is optimal: you might use the test port (-30dB))Inputs: 1 FM + 1 DAB/VHF + 2 UHFOutputs: 1 main (FM-DAB-VHF-UHF) + 1 test port (-30dB)Frequency range (MHz): FM: 88 - 108 VHF:174 - 240 UHF: 470 - 862LTE protection (MHz): Automatic selection: 694, 790 or OFFInput level (dBµV): FM: 37 - 77 VHF: 45* - 109 UHF: 45* - 109FM output power (60dB/IM3) (dBµV): 113VHF/UHF output power (60dB/IM3) (dBµV): 114VHF/UHF output power (36dB/IM3) dBµV: 125VHF/UHF output power with 1 MUX (dBµV): 108VHF/UHF output power with 6 MUX (dBµV): 107Number of channels: More than 50 (15 filters)Add channels: Per 1, 2, 3, 4, 5 or 6 MUXesConversion: from any VHF to any VHF channel / from any UHF to any UHF channelGain (dB): FM: 35 VHF: >60 UHF: > 60Gain adjustment (dB): FM: 20 VHF/UHF: Channel AGCGeneral attenuator (dB): 20Selectivity (dB/1MHz): 35Return Loss (dB): 10Output MER (dB): VHF: >35 UHF:> 35ESD protection: All inputsDC @ VHF/UHF input (V): 12 or 24DC Load current @ VHF/UHF input (mA): 100 (total for the 3 inputs)Operating temperature (°C): -5 to +50Power Supply (V): 100-240Power Consumption (W): 12Dimensions (mm): 217 x 165 x 59Weight (kg): 0,8For 64QAM with code rate 3/4
