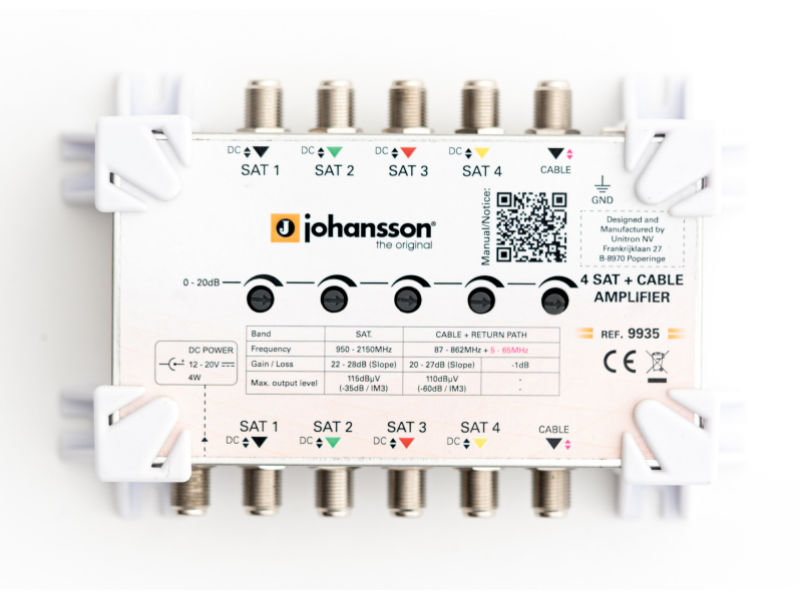

JOHANSSON Amplifier x4 SAT + 1 TERR

5 lines Amplifier 4x SAT + 1x Cable. F-con DC Powered.Main features:Separate adjustment for gain on every lineFixed pre-slope for satellite and cableDC input (F-con) for powering trunk line amplifiers & LNBInputs : 4 SAT + 1Terr ‘CABLE’ (inc. return path)Outputs: 5Frequency range MHz: SAT 950-2300 MHz / TERR 87-862 (+ 5-65MHz return path)Gain dB: SAT 22-28dB (sloped) / TERR.: 87-862 MHz : 20-27dB (sloped)Return path: -1dBNoise figure dB: SAT 5 / TERR 6Gain adjustment dB: SAT 20 / TERR 20Max. Output level dBµV: SAT 115 dBµV* / TERR 110 dBµV ** / RP: passive 87-862 MHzConsumption - 4W From 12 - 20VDC external power supply or input / outputDimensions mm: 58 x 102 x 51-35dB/IM3** -60dB/IM3
