JOHANSSON Compact Satellite Headend

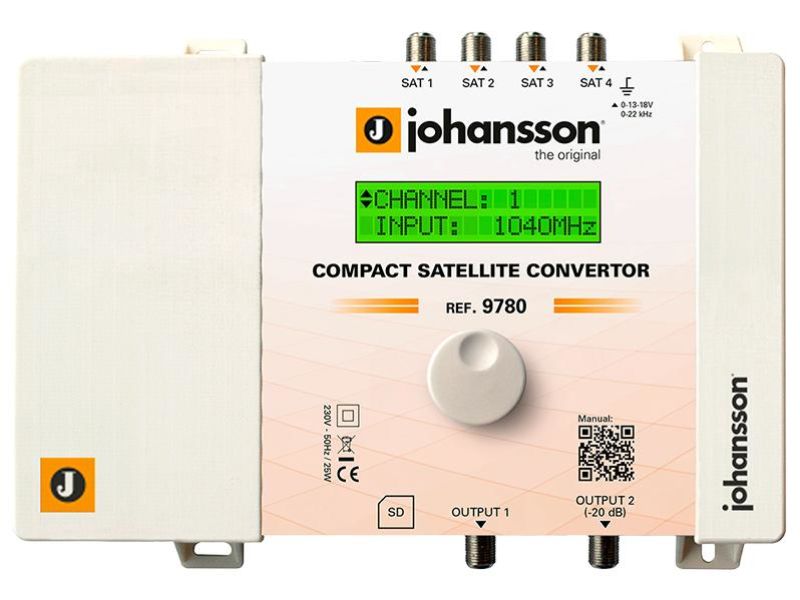

The 9780 is the new generation convertor for satellite signals to be used in MDU’s. The compact plug-and-play module has a straightforward and easy configuration. Perfect for equalising and optimising satellite transponders as input for your optical headend.Programmable satellite IF convertorUp to 32 DVB-S/S2 transponders4 satellite inputs (Quattro/Quad/Wideband LNB)Realtime AGC on all individual transpondersRead-out of input level strength: no need for field strength meter110 dBμV (output level)Auto-tuning functionalityCan be used in Fiber Optic Systems with up to 128 passive splitsUsers of this compact satellite converter feel it truly is an innovative product with 5 big advantages: -1. The most cost-efficient satellite convertor solution on the market2. Very easy and fast installation, without the need for a field strength meter3. Extremely sharp filters4. Perfect for equalizing and optimizing satellite transponders as input for a fiber headend5. Excellent quality of the output signal, the 9780 optimises the incoming satellite signal to assure supreme video quality on the end-users' TV-screensInputs: 4SAT (Wideband/Quattro/Quad)Outputs: 1 main (SAT) + 1 test port (-20dB)SAT Input Frequency range (MHz): 290 - 2340SAT Output Frequency range (MHz): 290 - 2340SAT Input level (dBµV): 40 - 95SAT output power (per transponder) (dBµV): 110SAT output power (35dB/IM3) (dBµV): 132SAT output level flatness (dB): <1SAT output level adjustment (dB): >40Slope adjustment (dB): 15SAT Gain (dB): >40Number of transponders: 32Conversion: Yes (all transponders)Transponder Bandwidth (MHz): 1 - 77 (per 1 MHz steps)Selectivity (dB): 35 (@ 1MHz)Return Loss (dB): 10Auto tuning: Yes (incoming transponders are copied from 1 input to output)ESD protection: All inputsDC@ SAT input: 13V/18V & 0/22kHz selectable by SWDC Load current @ SAT input (mA): 500SD port: Yes (for copy configuration)Operating temperature (°C): -5 to +50Power Supply (V): 100 - 240Power Consumption (W): 25Dimensions (mm): 217 x 165 x 59Weight (kg): 0.8
