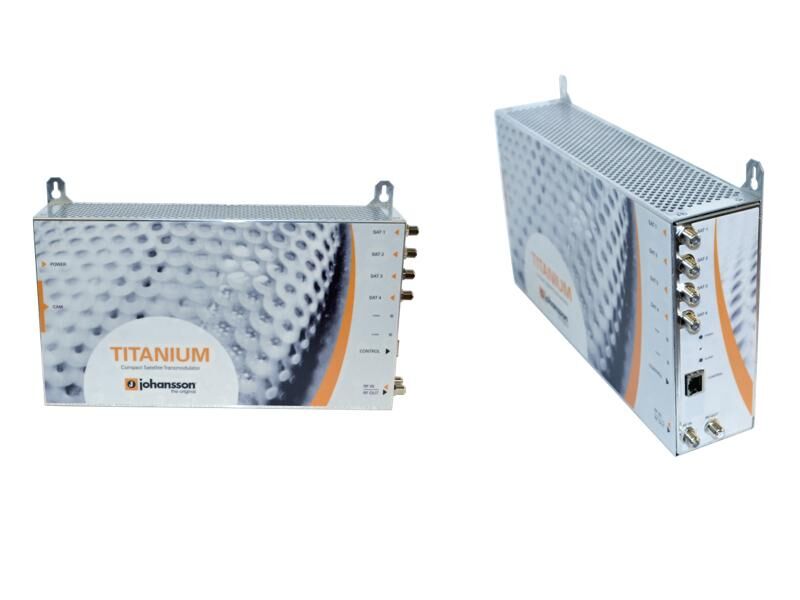

JOHANSSON Titanium 4 Compact Headend

Compact headend with 4 tuners and 4 output MUXs (DVB-T/C) / 2CI slotsTitanium is the newest compact headend solution that is suitable for small to medium-sized budget-friendly projects. The transmodulator with 4 tuners allows for very fast installation. Standalone frame with built-in power supply 4 tuners 2 CI slots for CAM cards 4 output MUXs (DVB-T/C) RF In & RF OutInputs-4 satellite bands 1 x RF inTuners-4 tuners (4 transponders)Frequency rangeMHz950 - 2150LeveldBµV44 - 84BandwidthMHz36Modulation-DVB-S2: QPSK, 8PSK / DVB-S: QPSKDC remote power at RF input-13 V / 18 V / 22 kHzIntegrated multiswitch-Yes, allows flexible routing of satellite proframs to multiplexes (QAM or QOFDM)Configuration-Built-in webserver accessible via management portEncoded programs-From all 4 tuners. Can be routed through 1 or 2 CAMs and can be decoded using multi-service CAMsMax current per input to feed LNBmA350 per inputOutput RFOutputs-1 with 4 MUXs (DVB-T or DVB-C)DVB-T outputMbpsUp to 31.7 / MUXDVB-C outputMbpsUp to 51.3 / MUX Output leveldBµV69 - 84 (adjustable)Output MERdB≥ 43GeneralPower consumptionW22 (excl. external LNBs)Dimensionscm34,5 x 7 x 18,2Operating temperature°C0 to +50
