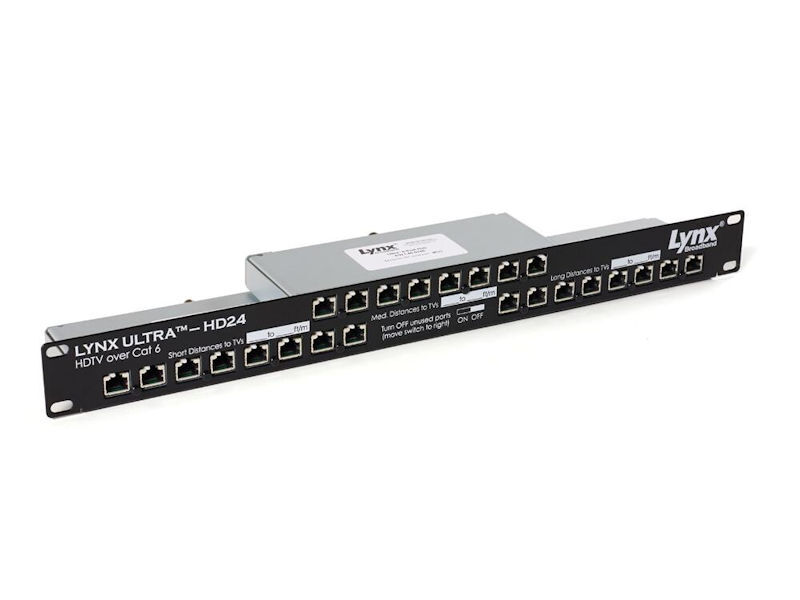

LYNX 24 Port Ultra Hub

The new Lynx Ultra simultaneously delivers up to 804 digital channels or 268 HD channels on Cat 5 or Cat 6 cable. It distributes RF with frequencies up to 860 MHz over distances up to 100 meters, and offers stunning resolution and visual quality, including HD, 4K (with UHD or HDR), and 8K content.An Ultra hub in the wiring closet (IDF) converts an unbalanced 75 ohm coaxial signal into 8, 16, or 24 100 ohm balanced signals transmitted on twisted pair cables. At the point of use an Ultra converter changes the signals back to coaxial form. The RF signals do not pass through a switch and do not use any bandwidth on the network. Specifications:Content: HD, 4K, 4K with HDR (high dynamic range), 8K, SD and analog televisionFrequency range: 5 MHz to 860 MHzBi-directional frequencies: 5 MHz to 42 MHzDOCSIS / FSK / T Channel video return capable Insertion loss for hub and passive converter: 14 dB at 550 MHz, 15 dB at 860 MHzSystem return loss: -15 dB at 550 MHzPower: No power required for hub or passive converter. Power for amplified converter is delivered via a micro USB. 5V, 2.5W max.Output impedance: 100 ohmsMER Minimal degradation of MER (modulation error ratio)Temperature: -20° C to +60° C with passive converter, 0° C to 55° C with amplified converterAgency compliance: FCC CFR 47 Part 15 Class A, EN55022, CISPR 22
