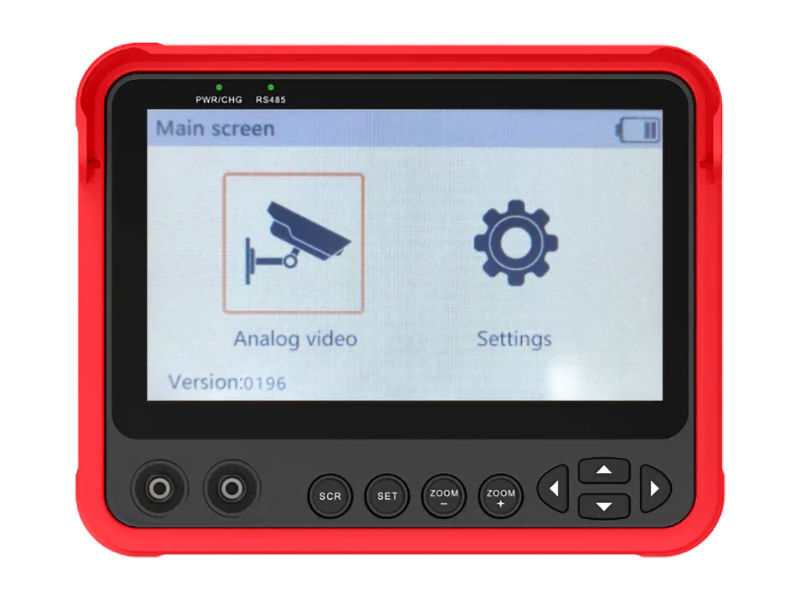

MAXXONE Analogue 4K EasyTest CCTV Tester

This MaxxOne Analogue 4K EasyTest™ CCTV Tester is the perfect tool for any installer. The lightweight unit features a handy flashlight to help installers see their work. With capability to test most analogue video protocols, PTZ control and audio signals, you’ll never need another CCTV tester for analogue installs.Main Features:Analogue Video Testing Audio Signal TestingRS485 PTZ Testing4.3 Inch DisplayOver 30 PTZ ProtocolsSupports up to 8MP Camera ResolutionWorks with TVI, AHD, CVI & CVBSSpecificationsVideo Format CVBS/CVI/TVI/AHD Automatic adaptation (Supports 5MP HD Analog for AHD, TVI, 8MP HD Analog for CVI)Power Output 12V/1A Output Connector: Round outer diameter (4mm), Inner needle 1.6mmAudio Test One Way Audio Signal InputCommunication Interface RS485Protocol Pelco-D/P, Samsung, Panasonic, Lilin, Yaan; More Than Thirty ProtocolsBaud Rate 150, 300, 600, 1200, 2400, 4800, 9600, 19200bpsFront LED Light 35m LED, AstigmatismCharger 5V/1A Micro USB, Plug Power SupplyBattery 18650 Battery, Capacitance 4000mAh, WorkingTime 5 HoursCharging 5V/1A Power charging, Charging time is about 7 hoursPower Saving Timeout Period Can Be Set To Automatically Switch,Battery Level Displayed in Real-TimeDisplay Screen 4.3 Inch TFT 480*272 Resolution,16.7M Color,Adjustable backlight brightnessSystem Upgrade Upgrade via USB to connect with the computer working environmentOperating Temperature 0°C-70°CWorking Humidity 30% - 90%Dimensions 124*99*67mmWeight 1Kg
