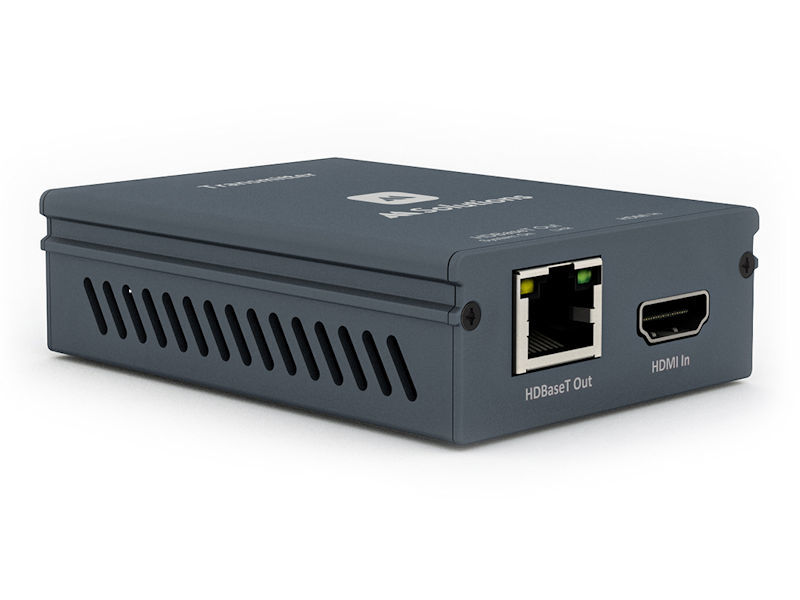

MSOLUTIONS HDBaseT Tester TX & RX Unit

HDBaseT Spec. 2.0 is the most recent and technically advanced profile for HDBaseT systems. Where HDBaseT 1.0 addresses only the physical and link layers of HDBaseT switching, Spec. 2.0 adds networking, switching, and control-point capabilities. Among other enhancements, it improves performance margin and optimizes existing infrastructures and bandwidth. The new Spec. 2.0 module, available for use with the MS-TestPro, enables users to test and certify all the added functions and capabilities of HDBaseT Spec. 2.0 systems with the same unsurpassed level of quality and reliability that the MS-TestPro is known for among HDBaseT 1.0 installers and integrators.Key Features:Expansion module for the MS-TestPro 104BAdds capability for HDBaseT 2.0 functionality testing on the MS-TestPro MS-104BSpecifications:TX & RX modules to fit into MS-104B MS-TestPro testerIndividual unit dimensions (W x D x H): 60mm x 84mm x 25mmIndividual unit weight: 0.1kgOperating temperature: 32°F to 104°F (0°C to 40°C)Storage temperature: -4°F to 140°F (-20°C to 60°C)Operating humidity: 0-80% non condensingPackage Contents:1 x MS-TestPro transmitter module – HDBaseT Spec 2.01 x MS-TestPro receiver module – HDBaseT Spec 2.0
