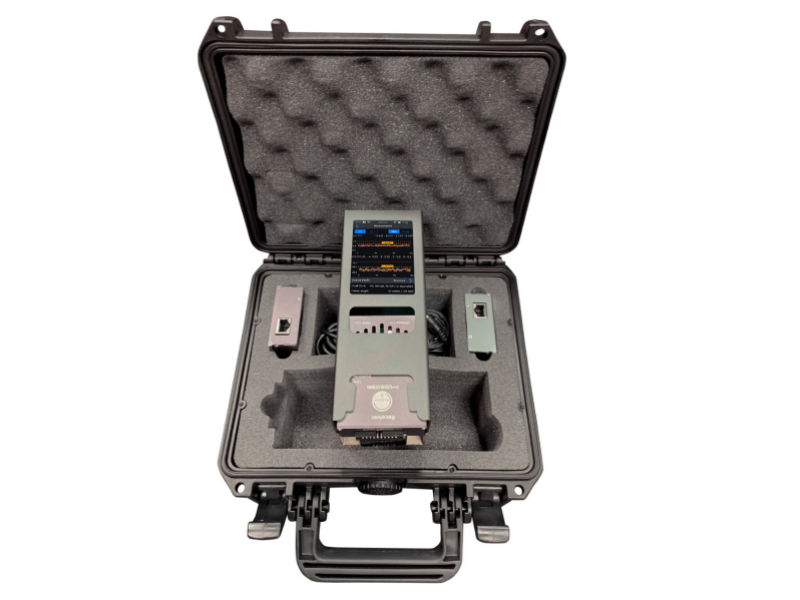

MSOLUTIONS Professional HDBaseT Tester + 2

KEY FEATURESThe ONLY HDBaseT ™ certified tester in the marketCertification for 4K cable infrastructure in under 10 secondsMains / battery powered unit 4 hours from a single chargeBuilt in WiFi access point for remote testing capabilitiesIntegrated video guides and user manualLog file analysis provided by an MSolutions professionalExpansion modules (Extra Cost) cover: DC Resistance, HDMI Cable Testing, HDBaseT™ Spec 2.0Expansion for AV over IP testing (via firmware update to MS-TestPro)Detailed performance analysis of twisted pair infrastructureData taken at both TX and RXSimple to understand traffic light systemPerformance thresholds outlined on GUIAWARDSISE Top New Technology award 2018 testing category - WINNERInstallation Best of Show Award 2018 - WINNERCEPro 2017 CEDIA Best in Class - WINNERrAVe Best of Infocomm 2017 - WINNERWHY TEST?HDBaseT™ is a live stream modulated data transport mediumRequires up to 8Gbps pass throughInadequate cabling infrastructure can lead to intermittent drop out of signal meaning loss of video / audioLeave site with 100% certainty the cabling will workCall outs cost both time and money for SI’sCustomers using MS TestPro have seen up to a 40% decrease* in return site visitsHDBaseT™ ANALYSIS INCLUDESPixel ClockChipset in useFeature/control supportCable length (5% tolerance)HDCPDCR (DC RESISTANCE) MODULEDC Resistance Module - checks DC Resistance of CATx cables compliant with IEEE802.3bt, confirming ability to provide a sufficient level of power across a link.Measure DC Resistance of CATx cable to ensure capability to pass PoE /PoH effectively to the IEEE 802.3bt standardCan be used for both HDBaseT™ , IP, and PoE infrastructuresTESTSDC Loop Resistance in ohms of a cableUnbalanced Parallel DC Resistance displays the parallel resistance of the two CATx conductors in each cableUnbalanced Pair to Pair Resistance displays the difference between the four pairs in the cableHCT (HDMI CABLE TEST) MODULEHDMI Cable Test Module - ensures compliance to Standard / High-Speed bandwidth requirements including 18Gbps support.End to end HDBaseT™ and HDMI testing and diagnosticsEnsures compliance with HDMI standard / high speed bandwidth requirements, including 18Gbps supportQuick, simplified HDMI cable troubleshootingExpands testing coverage saves both time and moneyVerifies support for HDMI2.x Ethernet and HEACChecks all 19 pins connectivityFast report generation in .pdf formatFuture proofed for 8K testing (firmware update)AVoIP LICENSE AV OVER IP MODULEAV over IP Network Capability Test upgrade - MAC/IP addresses with Ping and config, network nodes, SNMP information, IGMP Snooping for VLAN / fast leave.Snapshot of AVoIP configurationMAC / IP addresses, ping time & current configNumber of present nodes on the networkSimple Network Management Protocol (SNMP information)Internet Group Management Protocol (IGMP) Snooping including:VLAN set upFast / immediate leave supportPre- populated with specific switch vendor parameters for custom testing & reportingDelivered via firmware update to MS-TestPro unit
