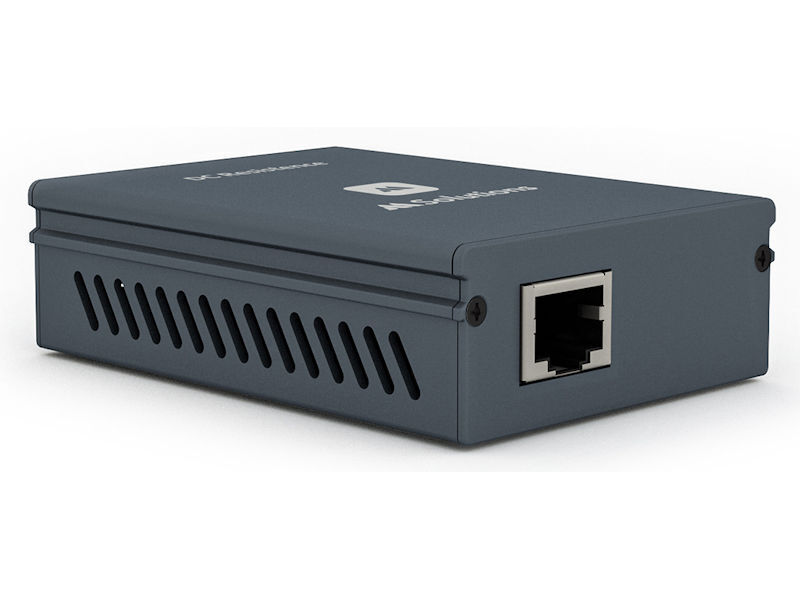

MSOLUTIONS Professional Test Module Only

The optional MS-TestPro DC Resistance and Looper modules, can be used to qualify the DC resistance of a CATx link, and to check the cables ability to provide a sufficient level of PoH (Power over HDBaseT). The DCR will check for: 1. Loop Resistance which represents the DC loop resistance in Ohm (Ω) of a cable, and is calculated as the sum of the DC resistance of the two conductors in a pair. 2. Parallel DC Resistance Unbalanced for the parallel resistance of the CATx two conductors in each cable pair. For each pair, the difference is expressed in ohms (Ω). Finally, 3. Pair-to-Pair Resistance Unbalanced which is the difference in DC resistance between all four twisted pairs in the cable. For each pair, the difference is expressed in ohms (Ω).Key Features:Expansion module for the MS-TestPro 104BAdds capability for DC Resistance testing on the MS-TestPro MS-104BFor use with HDBaseT, IP, and PoE infrastructuresTests for DC Loop Resistance (in ohms), Unbalanced Parallel DC Resistance, and Unbalanced Pair to Pair ResistanceTests for PoE to IEEE 802.3bt standardSpecifications:DCR & Looper modules to fit into MS-104B MS-TestPro testerDCR module dimensions (W x D x H): 60mm x 84mm x 25mmDCR module weight: 0.1kgLooper module dimensions (W x D x H): 60mm x 33mm x 25mmLooper module weight: 0.1kgOperating temperature: 32°F to 104°F (0°C to 40°C)Storage temperature: -4°F to 140°F (-20°C to 60°C)Operating humidity: 0-80% non condensingPackage Contents:1 x DC Resistance Module1 x Looper Module
