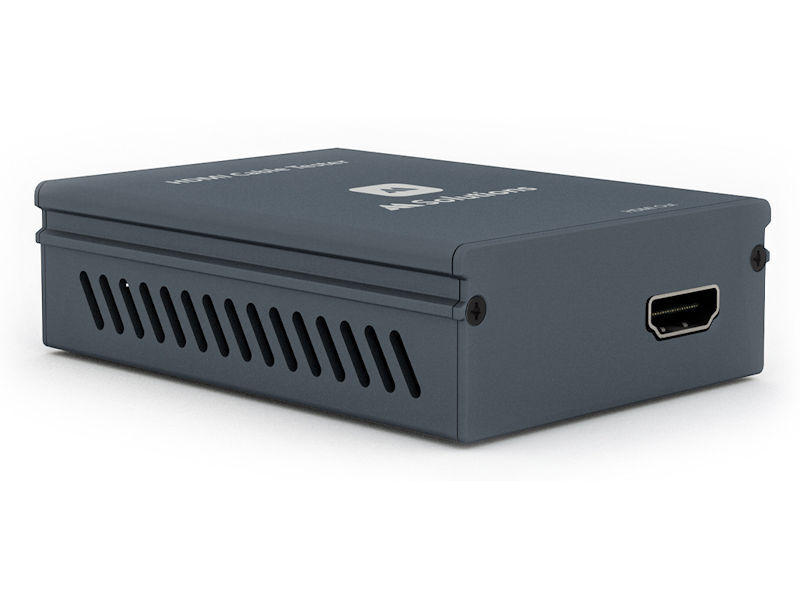

MSOLUTIONS Professional Test Module Only

The optional HDMI Cable Test Module enables ProAV integrators to easily evaluate cabling compatibility to the HDMI standard – including bandwidths (48 / 18 / 9 / 4.5Gbps), resolutions (HDR, UHD, HD), passive cable wiring quality, pin connectivity, and CEC support. The addition of these modules to MSolutions’ industry-leading HDBaseT testing device, offers an end-to-end ProAV testing solution from source to sink with its efficient, time-saving HDMI cable testing modules.Key Features:Expansion module for the MS-TestPro 104BAdds capability for HDMI Cable testing on the MS-TestPro MS-104BTest passive cables for Standard, High-Speed, 18Gbps and Ultra High-Speed (48Gbps) complianceQuick, simplified HDMI cable troubleshootingExpands testing coverage for integrators – save time and moneyVerifies support for HDMI2.x Ethernet and HEACTrue 19-pin test for all connections on a HDMI cableFast report generation in .pdf formatFuture-proofed for 8K testing (future firmware update)Specifications:HCT & Looper modules to fit into MS-104B MS-TestPro testerHCT module dimensions (W x D x H): 60mm x 84mm x 25mmHCT module weight: 0.1kgLooper module dimensions (W x D x H): 60mm x 33mm x 25mmLooper module weight: 0.1kgOperating temperature: 32°F to 104°F (0°C to 40°C)Storage temperature: -4°F to 140°F (-20°C to 60°C)Operating humidity: 0-80% non condensingPackage Contents:1 x HDMI Cable Test Module1 x Looper Module
