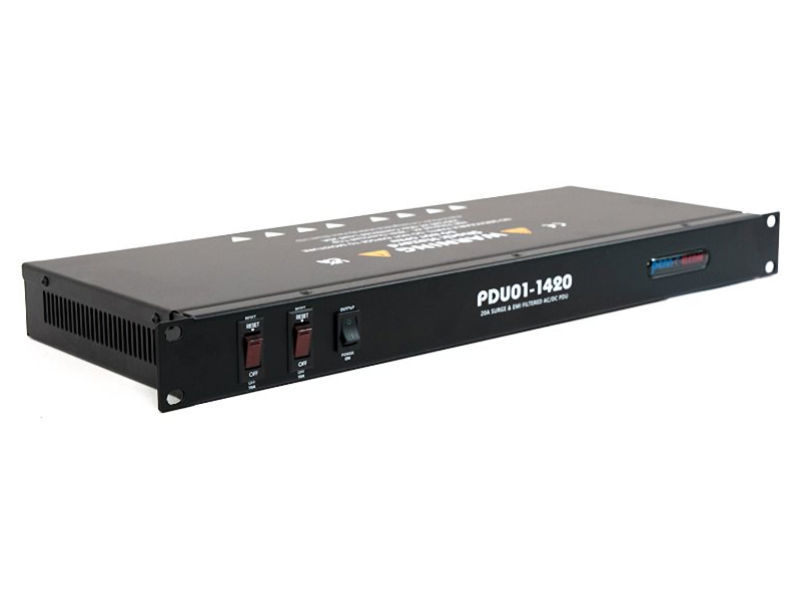

PENN-ELCOM 14 Way 1U Rack Mount PDU
SKU: PDU01-14
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
Designed to provide a versatile hook-up for the distribution of AC & DC power within multimedia racking applications. All components used in this unit conform t
Description & specs
Designed to provide a versatile hook-up for the distribution of AC & DC power within multimedia racking applications. All components used in this unit conform to current RoHS, CE & UL certification. Technical Specifications:Case Size: 45mm x 140mm x 430mm / 1.77" x 5.51" x 16.93" DC PSU: Switchable Isolated DC supply Earth Link: M4 Screw Terminal for rack grounding. Frequency: 50/60Hz Input: Neutrik Power Con with Internal 20A line Fuse, 20A EMI filter & GDC/MOV Lightning Strike/Power Surge Protection Max. A/C Output: Current 20A Nominal voltage: 230V Output AC: 8 x IEC320 C13 Output DC: 12 Way pluggable screw terminal socket. 3 x 5V dc max load 2100mA. 3 x 12V dc max load 1200mA. Protection: 2 x 10 Amp Circuit Breakers Usable Voltages: 200V - 240V
