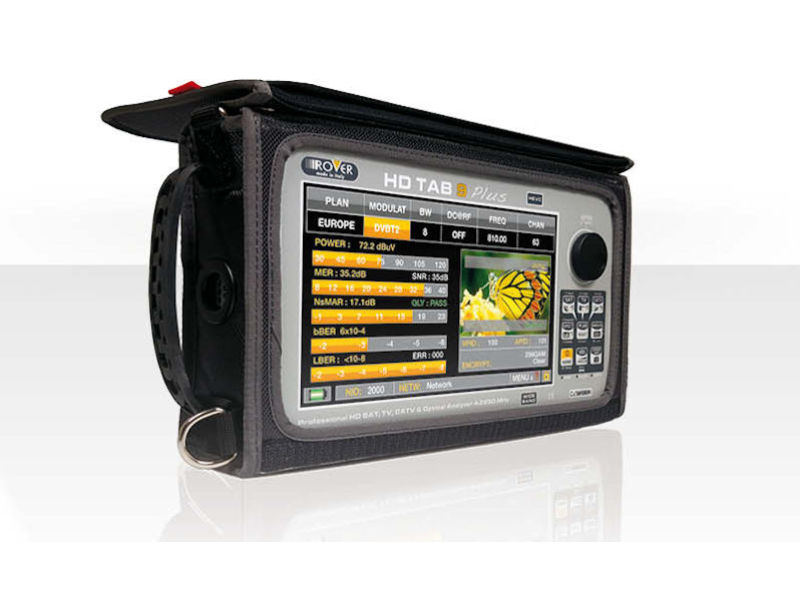

ROVER 9" Touch HD Tablet Spectrum Analyser

The PROFESSIONAL & ACCURATE TOUCH SCREEN ANALYZERMain features:9” TFT TOUCH display: 16:9 high resolution and high brightnessPower Supply: Built in LiPo battery with up to 6 hours duration & Battery Test functionDC voltage at RF input: 5 – 12 – 18 – 24 VDC, DiSEqC, SCR and dCSS commandsPC Interface: USB-AFront-Panel: Alpha numeric keypadPower Save: TFT backlight timer, brightness adj.PC Management: SMART softwareSpecial functionsETR 101-290 T.S. AnalyzerExclusive patented ROVER AUTODISCOVERY system: auto-matically detects and selects analog and digital COFDM/QAM TV signals in both measurement and spectrum modeHELP function: automatically identifies all the signals with digital modulation SAT, TV and CATVAutomatic Assistant: Signal Quality analysis, Channel Scan memorizationBarscan TV & CATV function from 10 to 100 channels on one screenBuzzer & Noise Margin real time graph for digital signals microinterruptionsReflectometric measurements APPPRODRIVE TEST: REMOTE MONITORING and LOGGING: TS, measurements, spectrum, thumbnailsOptical Input signalsSATELITE: DiSEqC, SCR & dCSS commands, motorized antenna, dual LNB, SAT FINDER and SAT EXPERTCustom Channel Plans: 25 (199 ch. per plan), Programmable TV, SAT (or combined TV/SAT) by PC or Local KeyboardLoggers: TV, SAT & combined with stop & go functionSAT Memory Plan: More than 2.000 transponders prememorized for world wide Satellite.Specifications:measurements & spectrum analysisFrequency Range: 4-1250 MHz; SAT: 950–2250 MHz (2610 with Sat extension opt.).Frequency Resolution: TV & CATV 25 KHz; SAT: 5 or 1 MHZ selectablePower range Measurement: TV 28 to 130 dBμV, SAT 30 to 130 dBμVDigital Measurement: Digital Power, MER (32 to 42 dB depending on modulation), BER, PER, LDPC, BCH, Noise Margin, MER versus CARRIERAnalog Measurement & Picture: Analog level, V/A ratioMeasurement Resolution: 0.1 dBLevel Measurement Accuracy: 1 dB typ. (2 dB max.)Resolution Filter Bandwidth: TV & CATV: 100 KHz @ -3 dB; SAT: 1 MHz or 5 MHz @ -3 dB selectableConstellation: for TV/CATV and SAT signals.Spectrum: Real time, Max Hold and spectrum memorization with real time compare functionNet-id on board: Net-id, NID, TSID, LCN, SAT Orbit PositionEchoes, Pre-echoes, Micro-echoes: Representation in real TimeQuality: Digital Auto quality Test: PASS-MARGINAL-FAILTS: TR 101-290 v1.2.1 ANALYSIS, SI, PMT, bit rate, network delay, MPEG services and tablesIPTV: measurements and picture decoding (opt.)Optical measurementsFC-ST-SC interchangeable input connectorsAutomatic loss calculationWavelengths (nm): 1310, 1490, 1550Range: -25 to 10 dBmResolution: 0.1 dBAccuracy: +/- 0.5 dBOptical to RF conversionComm.ports and outputsRF Input: 75 ohm (interchangeable “F”)LAN: RJ45 10/100 base EthernetUSB 2.0: Type B (PC Interface)USB 2.0: Type A (USB drive)Digital Pictures: MPEG2-4 SD & HD pictures with Program List, Audio Video PIDs, LCN, Video bit Rate all on one screenAudio: AAC supplied, DOLBYAsynchronous Serial Interface (ASI): ASI input on 75Ω BNC connector, ASI output on 75Ω BNC connectorAudio/Video: Composite A/V input, HDMI outputCommon Interface: PCMCIA slot for single/multi-service CAM modulesWeight: only 2,6 Kg with batteriesSize: H 29,0 x W 17,0 x D 5,5 cmHousing: Aluminium and Steel and padded bag
