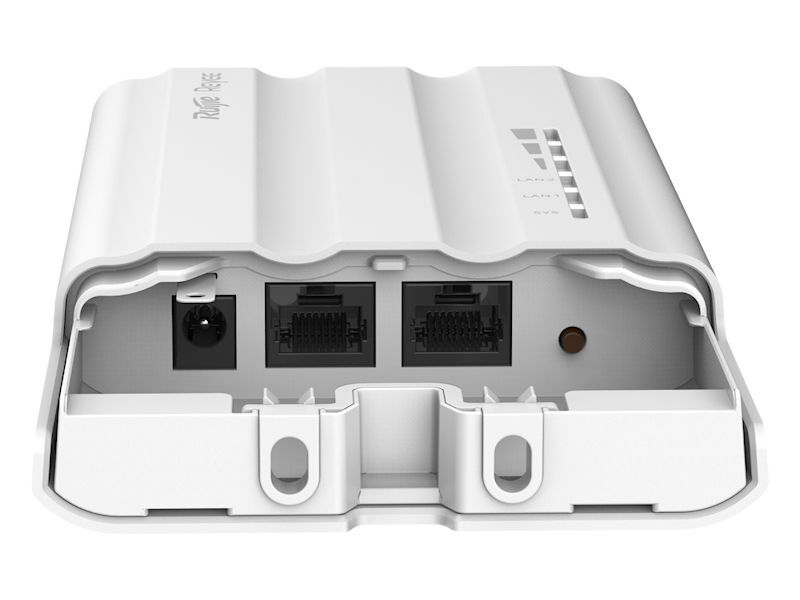

RUIJIE Wireless Bridge base PtMP

RUIJIE Wireless Bridge Base PtMP is a robust wireless network solution providing extended transmission range, enhanced connectivity, and superior environmental protection.Key Features: • Exceptional wireless transmission range covering a maximum of 10km. • Maximum of 1:32 PTMP links, allowing for easy pairing within 30 seconds. • Dual GE ports included to enhance connectivity options. • Provision for 24 V Passive Power over Ethernet (PoE) and 12 V DC Input, opening scope for solar power supply integration. • Enhanced stability against harsh environmental conditions is provided by IP55 rating, Technical Specifications: • Dimensions: 200 × 98.5 × 29 mm (7.9 x 3.9 x 1.1 in.) • Working Distance: Increases with external antenna • Capacity: 5 GHz, offering 867 Mbps • Number of PtMP CPE: Ranging from 1 to 32 • Ports: Two 10/100/1000 Mbps ports available • IP Rating: IP55, ensuring high durability • Operational Temperature: –40℃ to +80℃ (–40°F to +176°F) • ESD: ±24 kV for both Contact/Air • Surge Protection: 6 kV • Power: Supports 24 V Passive PoE, 12V DC input • LED: Three for signal strength, two for LAN, one for system • Pairing Method: One-touch pairing in 30 sec, App pairing in 2 minutes RUIJIE Wireless Bridge Base PtMP is a robust wireless network solution providing extended transmission range, enhanced connectivity, and superior environmental protection.
