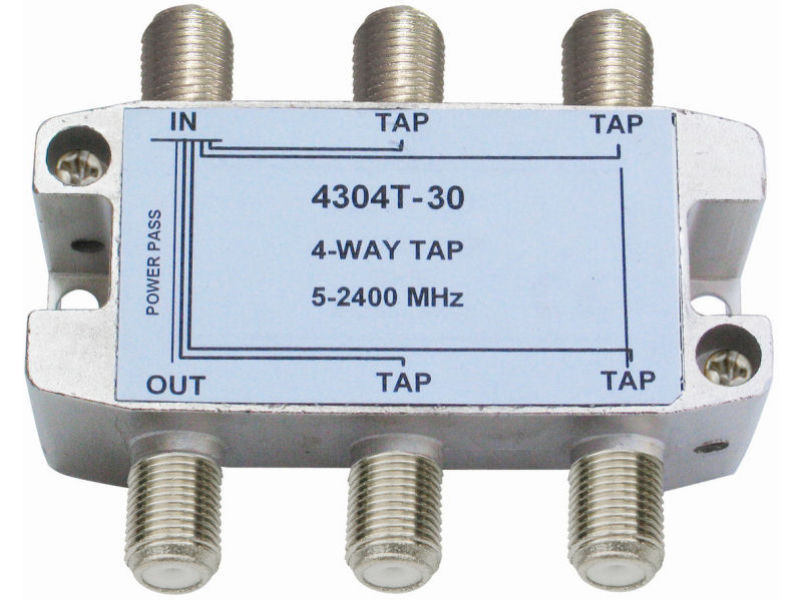

SAC 4-30 F Type Tap (5-2400MHz)

Zinc Die-Cast housing with Nickel PlatingF-(f) connector75 ohmGrounding terminal providedTwo screws attachedOutput port - input port power pass: max. 1A, 30VFrequency range 5-2400MHZScreening factor30-300 MHz > 75dB300-470 MHz > 75dB470-1000 MHz > 65dB1000-2400 MHz > 55dBInsertion Loss (dB) IN-OUT5-40 MHz: < 1.240-470 MHz: < 1.2470-1000 MHz: < 1.21000-1750 MHz: < 1.51750-2050 MHz: < 1.52050-2400 MHz: < 2.0Tap Loss (dB) IN-TAP5-40 MHz: 30 +/- 1.540-1000 MHz: 30 +/- 1.51000-2050 MHz: 30 +/- 2.02050-2400 MHz: 30 +/- 2.2Reverse Isolation (dB) OUT-TAP5-40 MHz: > 4540-470 MHz: > 35470-1000 MHz: > 301000-1750 MHz: > 281750-2050 MHz: > 252050-2400 MHz: > 25Mutual Isolation (dB) TAP-TAP5-40 MHz: > 1940-470 MHz: > 22470-1000 MHz: > 221000-1750 MHz: > 201750-2050 MHz: > 202050-2400 MHz: > 19Return Loss (dB) IN-OUT-TAP5-40 MHz: > 1240-470 MHz: > 12470-1000 MHz: > 111000-1750 MHz: > 101750-2050 MHz: > 102050-2400 MHz: > 10
