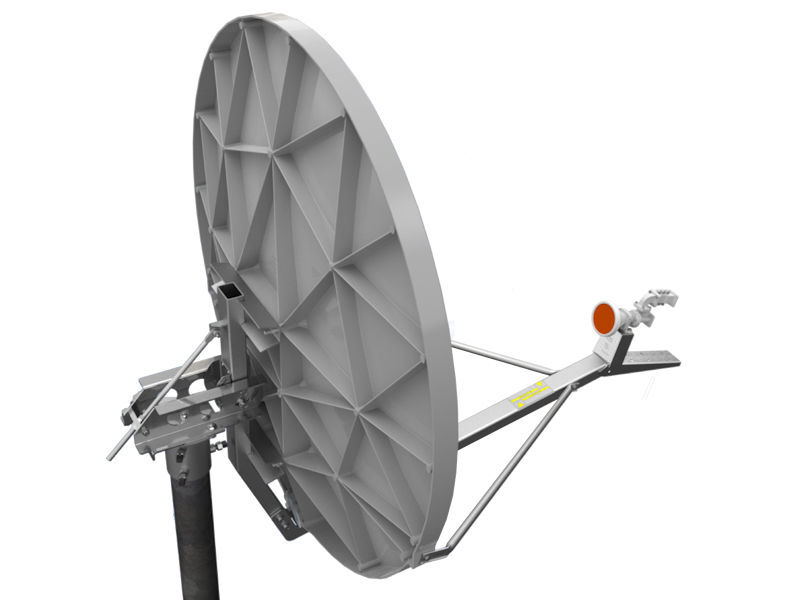

SKYWARE GLOBAL 1.2m Offset Dish c/w Az/El

*Carriage to your desired location will need to be calculated and then will be added at cost so please call for a quotationType 120 Ku-Band Receive Only Antenna SystemThe Skyware Global 1.2 m Type 120 Offset Antenna is a rugged commercial grade product suitable for the most demanding applications. The reflector is thermoset-molded for strength and surface accuracy. Molded into the rear of the reflector is a network of support ribs which not only strengthens the antenna, but also helps to sustain its critical parabolic shape.Rugged Reflector MountThe Type 120 Az/EI mount is constructed from heavy-gauge steel to provide a rigid support to the reflector. The Az/EI mount secures the antenna to either a 60 mm 12.38"] or 73-76 mm 12.88"-3.00") 0.D. mast and prevents slippage in high winds.Corrosion Proof Antenna BackstructureA specially formulated powder paint process offers excellent protection from weather-related corrosion.Key FeaturesAll materials comply with EU directive No. 2002/95/EC (RoHS)One-piece thermoset-molded offset reflectorSingle bolt fine elevation adjustmentGalvanized 19 mm 1.75"] O.D. feed support legsFactory pre-assembled Az/EI mountPlated hardware for maximum corrosion resistanceAvailable with a wide variety of feedsRF PerformanceEffective Aperture1.2M (48 in)Operating Frequency3.40 - 4.80 GHzPolarizationLinear (circular optional)Gain @ 11.95 GHz32.0 dBi3 dB Beamwidth4.4˚Antenna Noise Temperature @30° El32°KVSWR1.3:1Cross-Polarization Discrimination (Linear)30 dB on AxisFeed InterfaceCPR229 Flat FlangeMechanical PerformanceReflector MaterialGlass Fiber Reinforced PolyesterAntenna OpticsOne-Piece Offset Feed Prime FocusMount TypeElevation over AzimuthElevation Adjustment Range10˚ - 70˚ Continuous Fine AdjustmentAzimuth Adjustment Range360˚ ContinuousMast Pipe Interface73 - 76 mm (2.88 - 3.00 in) DiameterWind LoadingOperationalSurvival80 km/h (50 mph)200 km/h (125 mph)Temperature-50˚C to 80˚CHumidity0 to 100% (Condensing)AtmosphereStandard Hardware Meets 500 Hour Salt Spray Test Requirements (ASTM B-117)Solar Radiation360 BTU/h/ft²
