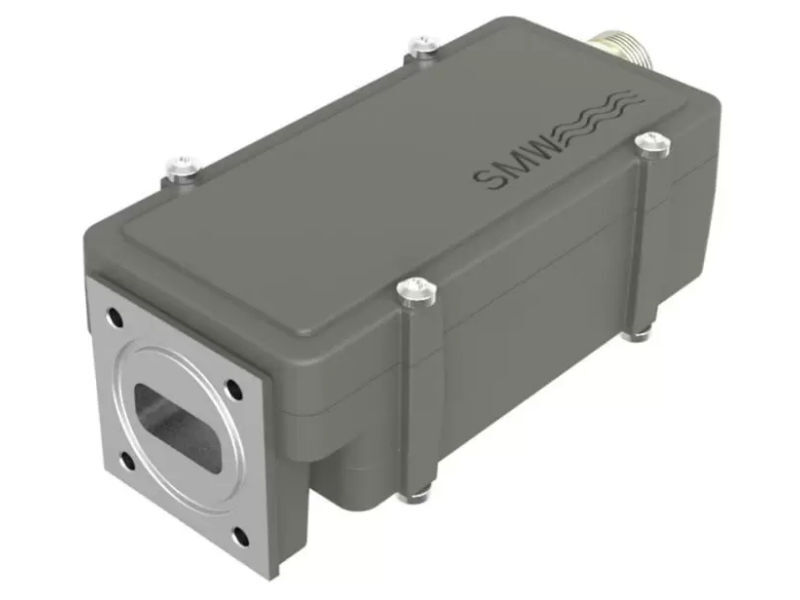

SWEDISH MICROWAVE Q-PLL LNB

The Multiband LNB for Ku-band frequency is ideal for installation in e.g. maritime VSAT or SNG applications where change of satellite band is common.FeaturesFrequency range 10.70-12.75 GHzSeveral LO frequencies availableLO switching by voltage and/or 22kHzChoose between Internal Ref. or External Ref. input modelsLow phase noise to meet the VSAT profile of DVB-S2XHigh P1dB and IP3Available as TWIN for H/V receptionCompact size and light weightWide operating temperature rangeBand switching2-Band Voltage (V) 13/18 V, 2-Band Tone (T) No Tone/22 kHz, 3-Band Voltage + Tone (VT) 13/18 V + No Tone/22 kHz, 3-Band Voltage (V) 13/15/18 V, 3-Band Voltage (V) 13/15/24 V, 4-Band Voltage + Tone (VT) 13/18 V + No Tone/22 kHzInternal/External 10MHz reference±1 ppm -20 to +70ºC (±1,5 ppm -40 to +80ºC), ±0,5 ppm -20 to +70ºC (±1,0 ppm -40 to +80ºC), External 10 MHz referenceGain60 dB typ. (standard), 60 dB min., 30 dB typ., 40 dB typ., N/AOutput connectorF-connector, N-connector, SMA- connectorType (LO's)A (10.00/11.00 GHz), B (10.00/10.75 GHz), C (9.75/10.75 GHz), D (10.00/10.80 GHz), E (9.75/10.60 GHz), F (10.00/10.75/11.25 GHz), G (10.00/11.30 GHz), H (10.00/10.75/11.30 GHz), I (9.75/10.75/11.25 GHz), J (10.00/10.60/11.05 GHz), K (10.00/10.60/11.25 GHz), L (9.75/10.00/10.60 GHz), M (9.75/10.25/10.75/11.30 GHz), N (9.75/10.00/10.75/11.30 GHz), O (9.75/10.25/10.75/11.25 GHz), P (10.00/10.50/10.75/11.25 GHz), R (10.00/10.75/11.30/9.75 GHz), S (9.75/10.60/11.30 GHz), T (9.75/10.75/11.30 GHz), U (9.75/10.50/11.25 GHz), V (9.75/10.50/11.05/10.00 GHz), W (10.50/11.30 GHz), Y (9.75/10.50/11.30 GHz), Z (10.00/10.90 GHz), N/ASep. input external 10 MHz ref.F-connector, N-connector, SMA-connector, N/ASep. DC inputSep. DC input (SMA-connector), N/A
