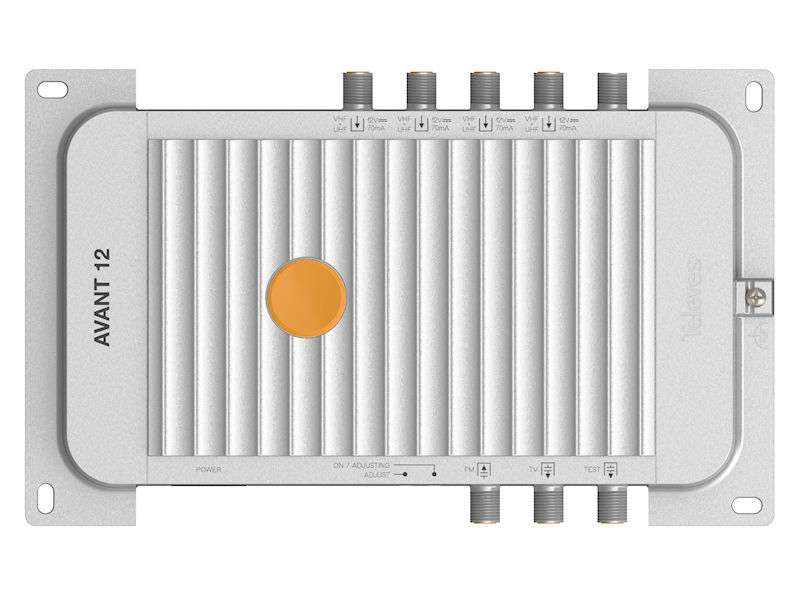

TELEVES Avant X Basic Digital Headend

Part of the latest Orange Dot family.Multi-input multiband amplifier, perfect for individual or MDU (Multi Dwelling Unit) terrestrial installations, that allows individual programming of channels available on 4 VHF+UHF (DTT) inputs, in a total of 32 digital filters. The multiband amplifier has 5 inputs, configurable in 2 distribution modes: FM-4x[VHF+UHF] or FM-DAB-3xUHF, and can achieve programmable amplification and balancing of the different RF inputs. In addition, it includes 4G/5G filtering, making the device discriminate by itself the programming of the filters up to channel 48 (LTE700).Thanks to the built-in Bluetooth® antenna, it is possible to carry out advanced programming of the multiband amplifier wirelessly from a smartphone or tablet (Android/iOS), with the ASuite application. With this application, the professional user can perform a wide range of functions:Channel filter programmingChannel level auto adjust for balancing all filtersManual fine-adjust after the auto adjust for each channel separatelyActivation of the antenna poweringHighlights:With the ASuite application, advanced programming of the device can be carried out wirelessly (Bluetooth®), easily and conveniently from a smartphone or tablet (Android/iOS)Single device with 2 distribution modes: 4 inputs support VHF/UHF, or one input is for DAB and the other 3 for UHFHigh output level: up to 124dBµV (DIN45004B), to reach a large number of outletsUp to 32 individually programmable filters, with individual digital filtering of each channel, including adjacent channelsDigital processing of the channels, resulting in a perfectly balanced signal level between the different channels at the outputAutomatic signal regulation in each filter (AGC). Also allows fine adjust of the output level after regulationHigh selectivity VHF/UHF digital filters: >30dB rejection (@ 1MHz)SAW (Surface Acoustic Wave) filter for rejection of 4G/5G signals from channel 48, with the best selectivity and stabilityDVB-T and DVB-T2 compatibleTForce technology: terrestrial signal level is always balanced and adjusted to the optimum valuePower supply at the inputs for antenna powering, when the signal requires itLED status indicator as well as physical autoadjust button built into the control panelHigh shielding chassis (Zamak) to protect against electromagnetic interferenceVery light and compact size for a high performance control unit (196x122x43mm)100% European design and manufacture: fully automated manufacturing and subjected to rigorous quality controls
