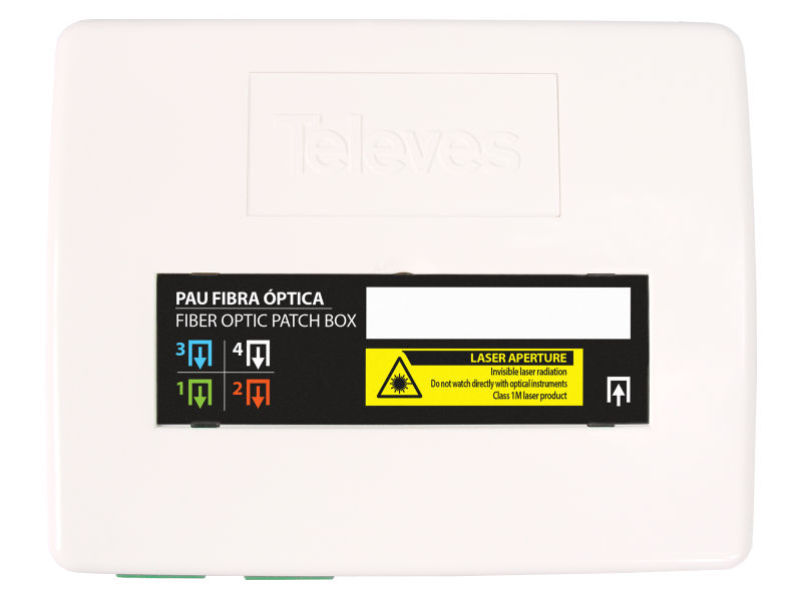

TELEVES Breakout Splice Box 2 or 4 Fibres

Optical fibre Patch/Splitting Box - 1 to 4 SC/APC outputs.Device enabled as a connection point to an optical fibre network. In ICT environments, when installed in the Network Termination Equipment (NTE), it works as a cut-off and test point for the optical fibre network. Thanks to the design, it also allows installation in other types of premises (car repair shops, classrooms, etc.) and is used as a connection point for optical fibre (work table, wiring cabinets, DIN rails, etc.) or else as an optical distribution frame, housing a 2 or 4-way optical splitter.HIGHLIGHTS:Made of robust ABS plasticWith a capacity of up to 4 SC/APC output connectorsMulti-anchoring system: DIN rail, wall or outletSingle direction of rotation of the fibres inside (which facilitates installation)Identifying labelEquipped with 2 "SC/APC" female-to-"SC/APC" female adapters (with self-locking cover)MAIN FEATURES:White colour (RAL 9003)6 inputs, pre-cut on its sides, for FO accessBack input for SC connectorBack input for FO and SC connectorPre-cut input at the bottom, for access to a distribution frame (SC/APC)Equipped with: 2 heat-shrink sleeves, 2 clamps, installation screwsGENERAL:Inputs: 6 precut inputs on the sides, to access FO / 1 rear entry for SC connector / 1 rear entry for FO/ 1 precut entry at the bottom for access to the splitter (SC/APC)Outputs: Up to 4 outputs for SC/APC adaptersMaterial: ABS (RAL 9003 white)Fixing type: Wall / DIN rail
