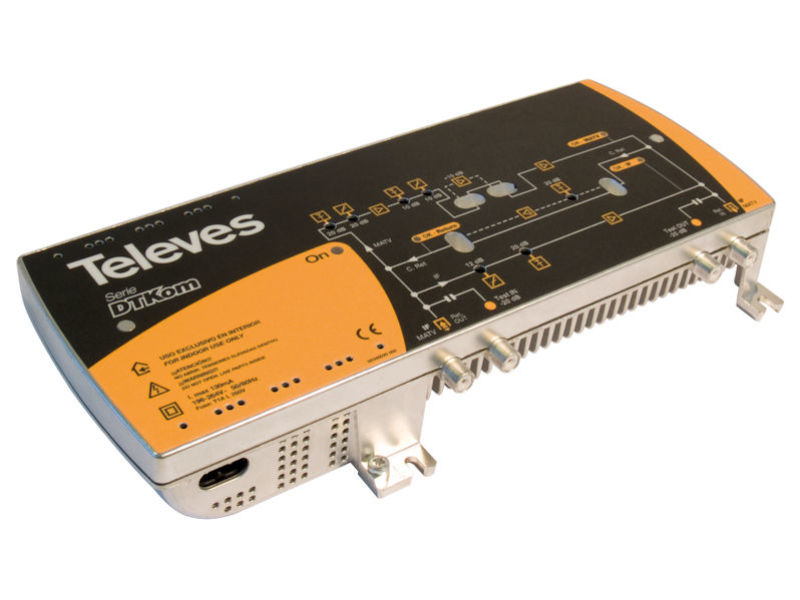

TELEVES DTKom Multiband Launch Amp

High-power line (1 input/1 output) multiband amplifier with multiple controls on the front end, which design uses components that minimise the total noise figure. Amplifies both terrestrial and satellite (SAT) bands, as well as the return channel.HighlightsSeparate amplification minimizes intermodulation between bands and provides high output levelsDesigned using Push-Pull technology, which guarantees levels in the 123 dBμV range for terrestrial signals.Includes a high-performance low-power consumption switch-mode power supplyHigh-screening Zamak chassis The design facilitates appropriate coolingMain featuresPre-equalisation and equalisation stagesConfigurable gain for terrestrial band and return channel using two switches (high/low)Intuitive front cover, including adjustments and block diagramOutput signal LED indicator
