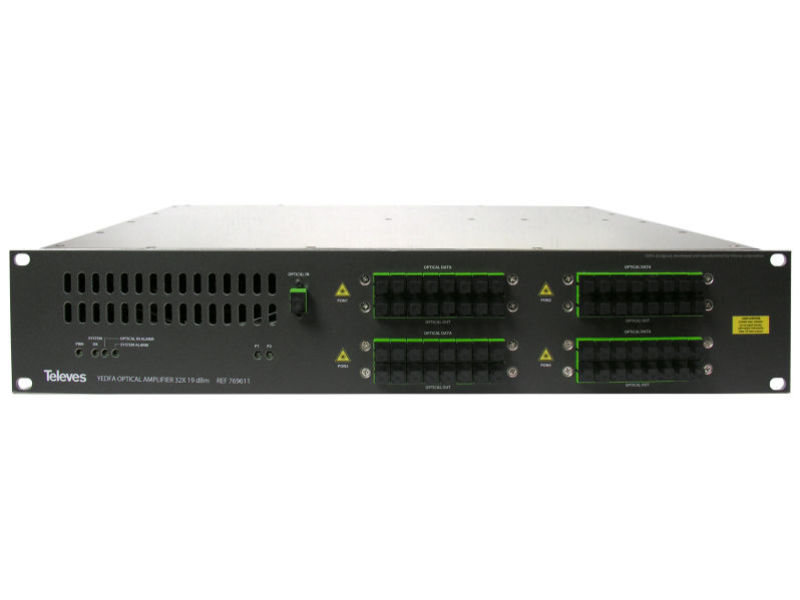

TELEVES EDFA/WDM 32 Out 1550nm

32-output YEDFA optical amplifier with WDM1550 nm, Po 20dBmThis device consists of an amplifier and a WDM. Designed to mix the RF Overlay service with GPON.The optical amplifier amplifies a 1550nm optical signal, with an output power of 20dBm. Based on YEDFA (Erbium and ytterbium doped fiber) technology, it provides a high gain, a higher optical power, and a low noise factor.Equipped with WDM, it provides 32 x 1310 nm/1490 nm-inputs that multiplex the amplified 1550 nm-signal, providing 32 x 1310 nm /1490 nm /1550 nm-outputs to be used in a GPON headend (usually OLT).HIGHLIGHTS20 dBm high-optical output power amplifierEquipped with WDM for the multiplexing of RF Overlay with GPON signals-10 dBm to +10 dBm input rangeStatus LED indicatorsHigh-efficiency power supplyHot swappable double power supply: subscriber service is not interruptedMAIN FEATURESApplication to include RF Overlay in GPON headendsSuitable for long distancesSC/APC connectorsOPTICALPorts number: 1 RF Overlay @ Optical IN / 32 GPON @ Optical DATA / 32 (GPON + RF Overlay) @ Optical OUOperating wave length (nm): 1310 ± 20 @ Upstream / 1490 ± 20 @ Downstream / 1548 ... 1565 @ RF OverlayInput RF overlay (dBm): -5 ... +10Output power RF overlay (dBm): 20 @ 1550 nmUniformity (dB): 0,5Noise figure (dB): 5 (Pin= 0 dBm @ 1550 nm)Insertion loss (1310 & 1490nm) (dB): <1Optical connector (type): SC/APCReturn loss (dB): <40GENERALInput power (V~): 99 - 264Frequency range (Hz): 50/60Max. input consumption (mA~): 600Max. input power (W): 55Working temperature: -5 ... + 45 ºC / + 23 ... + 113 ºFHumidity (%): 10 ... 95Protection Index (IP): 20
