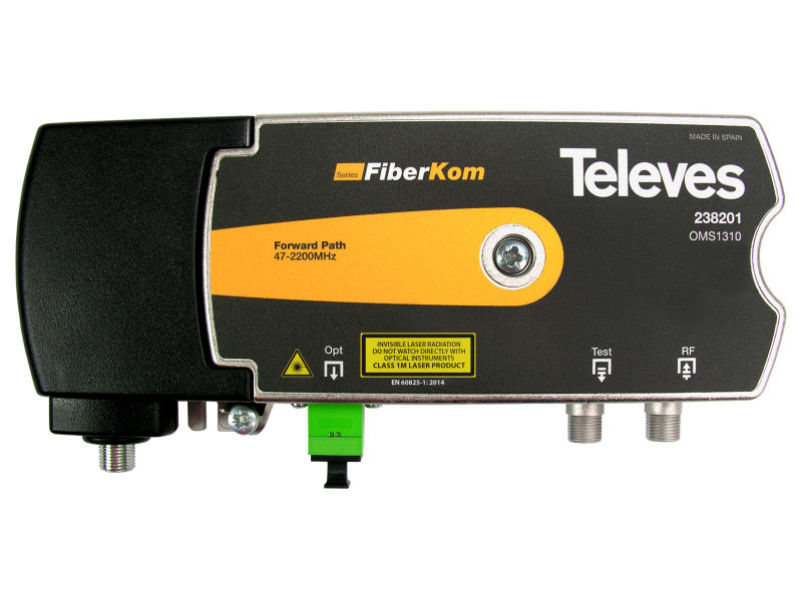

TELEVES Fiberkom Fibre Transmitter

SMATV FiberKom optical transmitter (without Return Path)1310 nm, Po 3 dBmGenerates an optical output signal of 1310nm of wavelengtH modulated by the input RF SMATV signal (47 MHz- 2400 MHz). It is possible to obtain an optimal output signal working with low input levels. The optical output power is 3 dBm.HIGHLIGHTSSMATV-compatible: up to 2400 MHz input bandwidth"Plug & Play" installationFiberKom design: made of Zamak, provides great robustness and shielding. The design also offers a wall assembly for separately installation.MAIN FEATURESOMI Test PointOptical level indicator with green LEDCoaxial power supply connector, with a maximum voltage of 35VSC/APC optical connectors, and F-type connectors for RFRFFrequency range (MHz): 47 - 2400Flatness: 47-1200 MHz (dB): ±0.75Flatness: 950-2400 MHz (dB): ±2.5Input level: 47-1200 MHz (dBμV): 79Input level: 950-2400 MHz ((dBμV): 95C/N (dB): >51CSO (dB): >60CTB (dB): >65OMI Test point (dBμV): 64OPTICALOptical connector (type): SP / APCLaser (type): MQW - DFBWavelength (nm): 1310Output power (dBm): +3GENERALRF connector (type): F-femalePower supply connector (type): F-femalePower supply voltage (V / mA): 11-35 / 120-40Operating temperature (ºC): -5 ... +45Index operation (IP): 30
