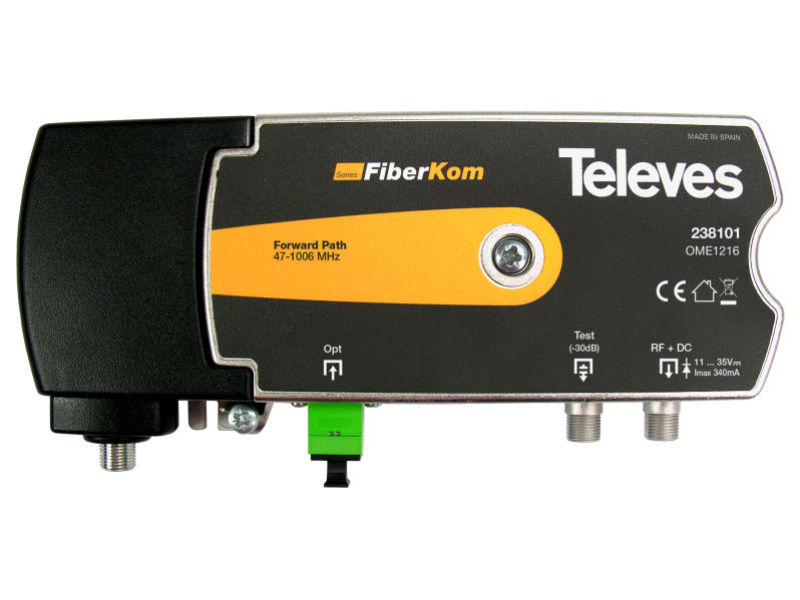

TELEVES Fiberkom Indoor Domestic Receiver

FiberKom optical mini-receiver equipped with OLC technology1200...1600 nmOLC Technology (Remote Powered)Optical mini-receiver for small MDU (Multi Dwelling Unit); receives one optical signal in the 1200 nm-1600 nm range and restores it on one RF output (47 MHz-1006 MHz) with amplification.Equipped with OLC technologyPerfect for RF Overlay, FTTB, and FTTH applicationsHIGHLIGHTSThe OLC (Optical Level Control) technology automatically adjusts the parameters to achieve a constant output level, irrespective of the channel loadEquipped with pre-equalization, attenuation, and equalization controls to adapt the output signal to the coaxial network characteristicsHigh output voltage (RF amplification) and enhanced C/NWide reception optical rangeLow power consumptionMAIN FEATURESSC/APC optical connectors, and F-type connectors for RFFORWARD PATHFrequency range (MHz): 47 ... 1006Output impedance (Ohm): 75Optical input level for OLC (dBm): -8 ... +1dBmFlatness (dB): ± 1Number of outputs (no.): 1Typical output level in OLC range (dBμV / dBmV): 100 / 40CNR (dB): >51CSO (dB): >60CTB (dB): >60Equivalent noise current density at input (pA/Hz): < 6Gain control (2dB steps) (dB): 0... 18Pre-emphasis (dB): 3, 7, 9Wavelength (nm): 1200 - 1600Optical return loss (dB): >40Optical connector (type): SC/APCMax. optical input power before damage (dBm): 2Optical device (type): InGaAs pin photodiodeGENERALPower voltage / Max. consumption (V=/mA): 11 / 340.... 35 / 140Test point (dB): -30 ±1RF connectors (type): FHousing material: Zamak/ABSOperating temperature: -5...+45 ºC / +23....+113 ºFIndex operation (IP): 30EMC compatibilit: EN 50083-2Safety: EN 60825-1
