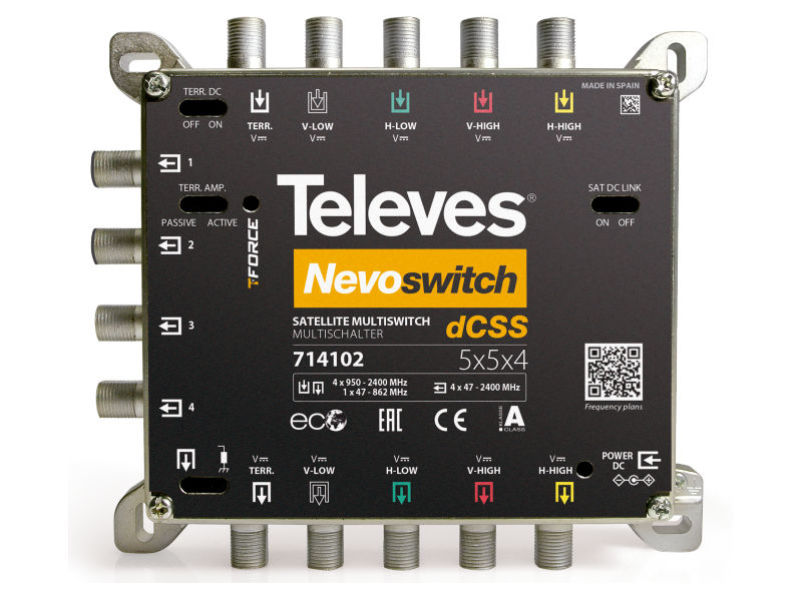

TELEVES Nevoswitch 5x5x4 dSCR

Multiswitch equipped with 5 inputs (one passive terrestrial and the four polarities of one satellite), and 4 user outputs that are compliant with SCR I (EN50494), SCR II (EN 50607) and legacy mode, which makes it compatible with any new or existing set top boxes.Can be used as a terminal (star topology) or as a cascade by using a simple switch.Furthermore, the exclusive DCFLEX functionality provides full flexibility to the multiswitch by allowing the equipment to be powered from anywhere in the system. The installer is free to choose the powering method for the multiswitch, to better adapt to the requirements of any given scenario. The versatility is provided by several control switches, but essentially by the capacity of the multiswitch to be isolated from the cascade (in terms of current) or not.Up to 16 user bands each user outputDCFLEX functionality, multiple powering options: From the power supply or from the cascade through the satellite inputs or outputsEasy to integrate in an existing system: By switching the SAT DC LINK to OFF with the power supply connected, the MSW is locally powered without adding nor taking power from the cascadeBrings higher security to the set top boxes connected to the multiswitch, which are fully isolated from the power supply in the cascadeThe TERR.DC ON switch isolates or connects the power supply available from the cascade in the terrestrial branch. Can be useful for the feeding of a mast amplifier or a BOSS antenna, but also for the terrestrial branches of other MSW in the cascadeWide voltage range: Voltages from 10 V to 20 V make it compatible with most existing systemsEco mode: Isolated from the cascade, the multiswitch can reduce power consumption down to zero, when the set top boxes are disconnected and the terrestrial passiveEquipped with the TForce technology, the terrestrial output level is automatically adjusted to the optimal levelEuropean design, quality, and manufacturing
