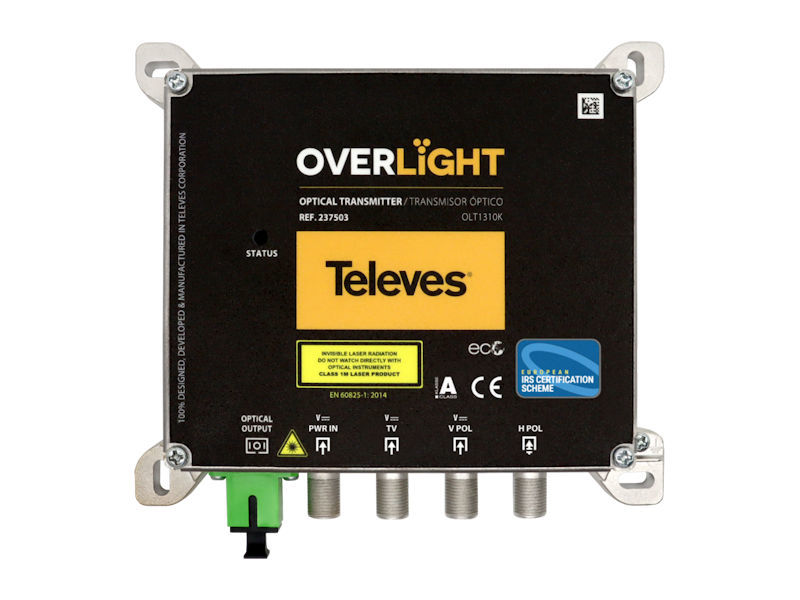

TELEVES OVERLIGHT TX 1310nm 10dBm OUT

CWDM WideBand satellite and terrestrial optical transmitter specifically designed for indoor installation. This device receives a satellite signal from a RF Wideband LNB and terrestrial band, and distributes it up to 64 users over a fiber output in the 1310nm window with 10dBm optical power.Thanks to its optimized electronics and low losses, it allows to reduce the number of amplifiers required and simplifies deployment in the design of collective installations, preserving the signal quality throughout the process.This device is part of the Overlight system, that distributes satellite and terrestrial signals to multiple users through a single optical fiber.This product is certified with the European IRS Certification Scheme mark, representing that it has passed the relevant test as set out in the latest EICS test specification, available from the DTG or CAI.Main Features:High output level that makes it ideal for collective installations of up to 64 usersLow lossesOptimized electronic behaviorVery compact in dimensions and weight (137x126x45mm)Designed for indoor installationPowering from an external power supply, via power input (F connector)SC/APC optical connectorF-type RF connectorsHigh-screening Zamak chassisWall and mast mountingPower supply and adapter cable includedLED signal status indicator
