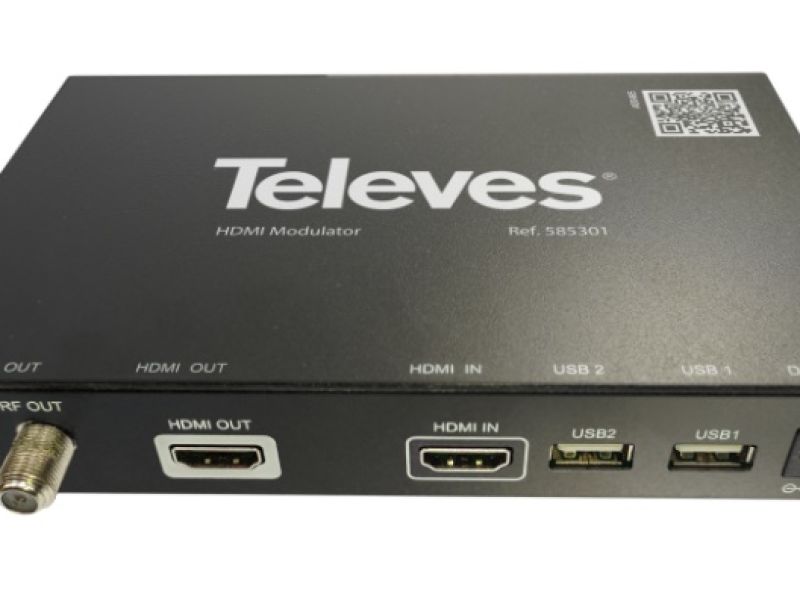

TELEVES Single HD DVB-T Encoder/Modulator

A device that transforms a digital video and audio (HDMI) signal into a modulated FullHD (MPEG-4/H.264) signal into a DVB-T channel. The input digital signal comes from an external SD/HD source: satellite receiver, DVR/NVR, DVD, CCTV, etc.It is equipped with an HDMI loop through to connect the input signal to the TV/MonitorThe channel generated by the HDMI source can be mixed with the DTT signal and then distributed over a single coaxial cable. Its content can thus be displayed on all the receiving devices of the system.The device can be configured with an App for Android 6.0 / iOS 13 or higher.HighlightsFully configurable: input format, transport stream configuration, output channel configuration...Perfect image and audio synchronizationHigh-quality encoding, thanks to VBR (Variable Bit Rate)Easy and intuitive App (Android/iOS) to configure the deviceEnergy efficiency and low consumptionMain featuresHDMI pass-throughMPEG-4 (H.264) format video encodingCompatibility with multiple resolutions (up to 1080p @60fps)Automatic detection of the input resolutionVideo loop playback via USB port (.TS format)Firmware update via USBENCODERVideoCodingH264 Profile Level 4.0 InterfaceHDMI IN/HDMI OUT (loop through) Input resolution 1080p Max. Output resolution Auto, 1080p, 720p, 576p, 480pBit rateMbps2, 4, 6, 8, 12, 18AudioInterfaceHDMI IN/HDMI OUT (loop through)FormatMPEG-2 / AAC / AC3 Bit ratekbps192MODULATORStandardDVB-T (ETSI EN 300 744)ModulationQPSK, 16QAM, 64QAM Fraquency range MHz174 ... 230 / 470 ... 862 MERdB35 typ. RF output level dBµV85 ... 105RF adjust level dB20 (1dB per step) Bandwidth MHz6, 7, 8 USBFile system FAT 12/16/32Maximum file is 4GB*Recommended memory GB32 (USB pendrive)Video playing Only "video.ts" file (USB root folder)SYSTEMManagementAppApp operating system Android 6.0 or higheriOS 13 or higherFW Update USBGENERALPoweringVdc12ConsumptionA1Operating temperature ºC5 ... 40Relative humidity %80 (@30ºC) Editable parameters SERVICE NAME, NETWORK NAME, PROVIDER NAME, TS ID, NETWORK ID, ORIGINAL NET ID, LCN, NIT VERSION, PRIVATE DATA, País(*) Televes does not guarantee 100% compatibility with all USB devices; using high-quality USB devices is recommended.
