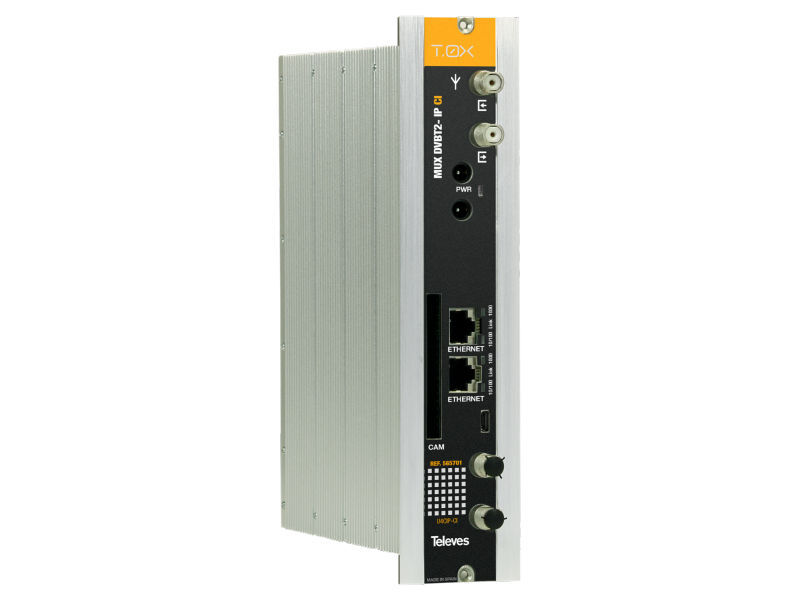

TELEVES T.0X DVBT/T2-IP CI MUX 4C

Streamer generating an IP encapsulated output from the multiplexing of the services available in 4 different DVB-T or DVB-T2 muxes.The encrypted channels are transformed into free IP services through the CI interface and the appropriate CAM module. Depending on the CAM type used (standard/professional), one or several services may be opened for free visualization.The system will encompass a power supply and some streamer modules depending on the number of services to be distributed.Highlights:32 IP streams SPTSDiSEqC 1.0 for multiswitches controlService decryption by insertion of a PCMCIA moduleAccess to the headend configuration through a self-created WiFi network (using the kit with ref.216802)Internal switch for IP out Daisy chain of serveral modulesExternal to the headend services signaling, such as those coming from a HE-21 headendEquipment monitoring using basic SNMP protocol, which allows behavior values to be indicated through the network (network information, unit turn-on times, etc ...)Embedded user web interface for module configuration:Configuration of the entire headend selecting one of the module as a masterAutomatic detection of the modules that are connected to the masterCloning function to replicate configurations between modules and headendsUDP or RTP output protocol selection, for greater compatibility with IPTV sistemsHeadend control indicators: module temperature, CAM status ...Main Features:Selection of services among the 4 input muxes to distribute in streamingIncludes EPG information (Electronic Program Guide) in the headend output streamProvides flow information of each service to estimate the global output flow of the moduleDevice monitoring and signal status LEDs
