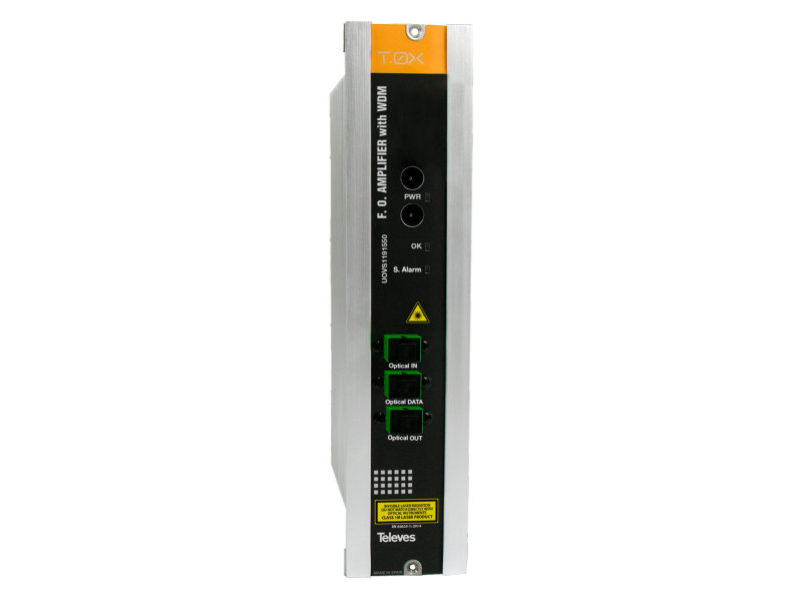

TELEVES T.0X EDFA 1 In 1 Out 1550nm 19dBm

1-output YEDFA optical amplifier with WDM1550 nm, Po 19dBmThe module amplifies the 1550 nm optical signal producing an optical output power of 19dBm. Equipped with WDM, it has one 1310 nm/1490 nm-input that multiplex the amplified 1550 nm-signal, providing one 1310 nm/1490 nm/1550 nm-output to be used in a GPON headend (usually OLT512).Based on YEDFA (Erbium and ytterbium doped fibre) technology, it provides a high gain, a higher optical power, and a low noise factor.HIGHLIGHTSEquipped with WDM for the multiplexing of RF Overlay with GPON signals-10 dBm to +10 dBm input rangeStatus LED indicatorsMAIN FEATURESOptical amplification for the RF service over fibre (RF Overlay) on GPON networksSuitable for long distancesSC/APC connectorsOPTICALNumber of ports: 1 RF Overlay @ Optical IN / 1 GPON @ Optical DATA / 1 (GPON + RF Overlay) @ Optical OUT (COM)Operating wavelength (nm): 1310 ± 20 @ Upstream / 1490 ± 20 @ Downstream / 1530 ... 1565 @ RF OverlayInput RF overlay (dBm): -10 ... +10Output power RF overlay (dBm): 19Noise figure (dB): 5 (Pin= 0 dBm @ 1550 nm)Insertion loss (1310 & 1490nm) (dB): <1Return loss (dB): >40C/N (dB): 51CSO (dB): >65CTB (dB): >65GENERALPower supply voltage (Vdc): 24Max. current consumption (mA~): 250Max. power consumption (W): 6Optical connector (Type): SC/APCOperating temperature: -5 ... + 45 ºC / + 23 ... + 113 ºFIP code (IP): 20
