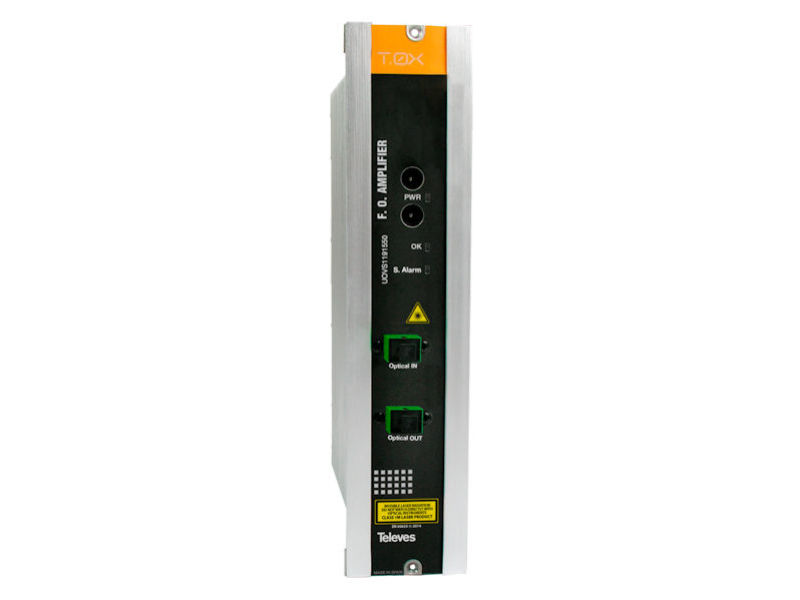

TELEVES T.0X EDFA 1 In 1 Out 1550nm 20dBm

1-output YEDFA optical amplifier with WDM - 1550 nm, Po 20dBmThe module amplifies the 1550 nm optical signal producing an optical output power of 19dBm. Equipped with WDM, it has one 1310 nm/1490 nm-input that multiplex the amplified 1550 nm-signal, providing one 1310 nm/1490 nm/1550 nm-output to be used in a GPON headend (usually OLT512).Based on YEDFA (Erbium and ytterbium doped fibre) technology, it provides a high gain, a higher optical power, and a low noise factor.Main features:Optical amplification for the RF service over fibre (RF Overlay) on GPON networksSuitable for long distancesSC/APC connectorsEquipped with WDM for the multiplexing of RF Overlay with GPON signals-10 dBm to +10 dBm input rangeStatus LED indicatorOptical:Number of ports: 1 RF Overlay @ Optical IN / 1 GPON @ Optical DATA / 1 (GPON + RF Overlay) @ Optical OUT (COM)Operating wavelength (nm): 1310 ± 20 @ Upstream / 1490 ± 20 @ Downstream / 1530 ... 1565 @ RF OverlayInput RF overlay (dBm): -10 ... +10Output power RF overlay (dBm): 20Noise figure (dB): 5 (Pin= 0 dBm @ 1550 nm)Insertion loss (1310 & 1490nm) (dB): <1Return loss (dB): >40C/N (dB): 51CSO (dB): >65CTB (dB): >65General:Power supply voltage (Vdc): 24Max. current consumption (mA~): 250Max. power consumption (W): 6Optical connector (Type): SC/APCOperating temperature: -5 ... + 45 ºC / + 23 ... + 113 ºFIP code (IP): 20
