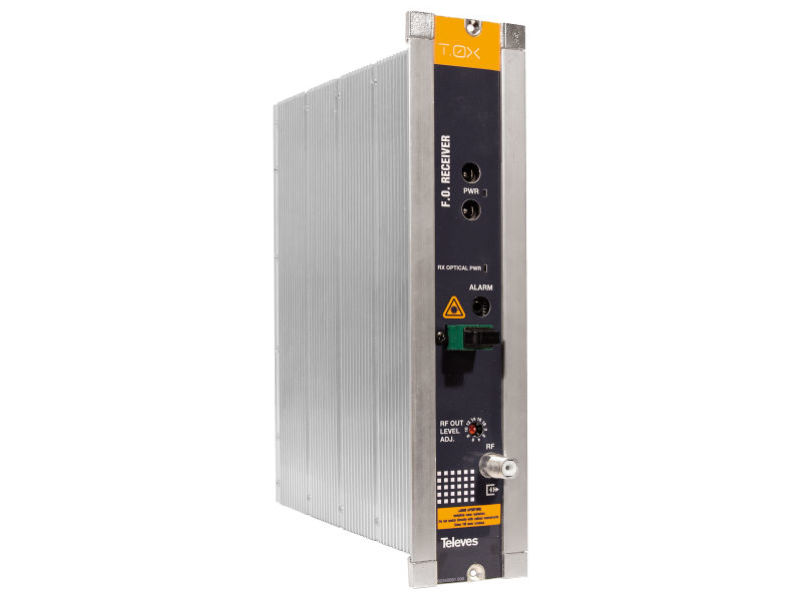

TELEVES T.0X Fibre Receiver

SMATV optical receiver without Return Path1200...1600 nmThey receive an optical signal in the 1200 nm-1600 nm range to restore the original RF signal transformed by a transmitter.The RF band is compatible with SMATV (87 MHz - 2400 MHz).Perfect for RFoG / RF Overlay solutions.HIGHLIGHTSWide reception optical rangeOutput level above 90 dBµVOptical power LED indicatorsThe output band includes SAT, up to 2400 MHzOptical power drop alarmMAIN FEATURESPerfect for RF overlay solutionsVery low equivalent noise conversionAdjustable attenuatorEasy to install and useHigh energy efficiencySC/APC optical connectors, and F-type connectors for RFRF INPUT/OUTPUTFrequency range: Forward channel (MHz): 87 - 2400 / Return channel: ----Maximum Output Level for CSO and CTB >= 60dB: 87-862 MHz: 93 dBμV / 950-2400 MHz: 90 dBμVOutput level regulation margin (in 2 dB steps) (dB): 0 - 18Maximum input level return path (dBμV): ----Equivalent input noise of the return channel, measured at 30 MHz and the transmitter output connected directly to the receiver (dBm/Hz): -152,5Flatness (dB): ± 1,5Return losses (dB): >= 11Impedance (ohm): 75OPTICAL INOUT (FORWARD CHANNEL)Optical device (type): InGaAs Pin PhotodiodeWavelength (nm): 1200 -1600Detection bandwidth (MHz): 1 - 3000Maximum Optical power received (mW/dBm): 4 / 6OPTICAL OUTPUT (RETURN CHANNEL)Laser (type): ----Wavelength (nm): ----Maximum output power (mW/dBm): ----GENERALPowering/Consumption: 12 Vdc (mA): 300 / 24 Vdc (Ma): 155RF connectors (type): F hembraOptical connectors: SC/APCOperating temperature: -5 ··· +45 ºC
