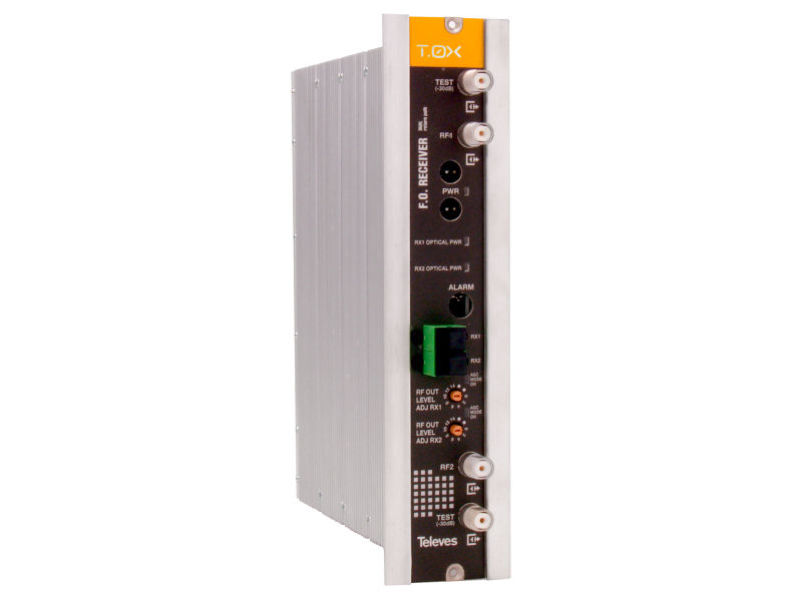

TELEVES T.0X Fibre Receiver

Return Path optical receiver with AGC1270...1650 nmReceives two fibres with two Return Paths in the 1270 nm-1650 nm range, and restores the original signals in RF (5 MHz-300 MHz).Equipped with automatic gain control (AGC) for a constant RF level, irrespective of the optical input level.HIGHLIGHTSTwo independent Return Path receivers per moduleAGC with operation LED indicatorConstant output level, irrespective of the optical input levelWide range of input power valuesMAIN FEATURESPerfect solution for high-density networks in terms of data and video trafficUseful in any type of network thanks to its wide dynamic range (-16 dBm to 1 dBm).Equipped with very low noise stages that minimize distortion effectsSC/APC optical connectors, and F-type connectors for RFRF PARAMETERS (each receiver)RF frequency range (MHz): 5...300RF output level (AGC mode) (dBμV / dBmV): 74 ±2 / 14 ±2RF manual gain adjust (dB): 0 ... 14 (steps 2 dB)Output test point (dB): -30 ±0.5Flatness (dB): ±1Return losses (dB): >=15Impedance (Ohm): 75RF connector type (tipo): FNPR (dB): >=40OPTICAL (each receiver)Wavelength (nm): 1270 ... 1650Optical input power (dBm): -16 ... +1Optical return losses (dB): 50Connector type (tipo): SC/APCAbsolute maximum input power (dBm): 5GENERALSupply voltage (Vdc): 12 ... 24Max power consumption (W): 5 (24Vdc)Operating temperature: -5 ... +45 ºC / +23 ... +113 ºF
