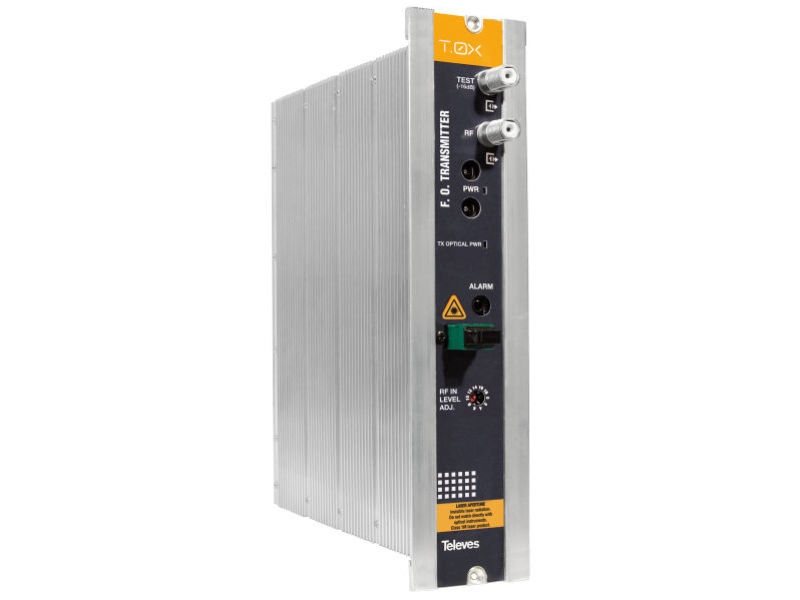

TELEVES T.0X Fibre Transmitter

SMATV optical transmitter (without Return Path)1310 nm, Po 10 dBmProduces an optical signal in the 1310 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 10 dBm.Perfect for RFoG / RF Overlay solutions.HIGLIGHTSSMATV-compatible: up to 2400 MHz input bandwidthRF input level control: optimization of the optical conversion quality parametersOptical power drop alarmMAIN FEATURESVery low equivalent noise conversionEasy to install and useHigh energy efficiencySC/APC optical connectors, and F-type connectors for RFRF PARAMETERSFrequency range (MHz): 47 - 2400Flatness: 47-1200 MHz ±0.5 dB / 950-2400 MHz ±2 dBImpedance (Ohm): 75Input level: RF 73 - 93 dBμV / SAT 63 - 83 dBμVManual gain adjustment (dB): 0 ... 14 (2dB steps)C/N (dB): >51CSO (dB): >60CTB (dB): >60OPTICALLaser (type): MQW - DFBWavelength (nm): 1310 ± 10Output optical power (dBm): 10GENERALRF connectors (type): “F” femaleOptical connector: SC/APCConsumption: 12 Vdc 290 mA / 24 Vdc 165 mAOperating temperature: -5 ... +45 ºC
