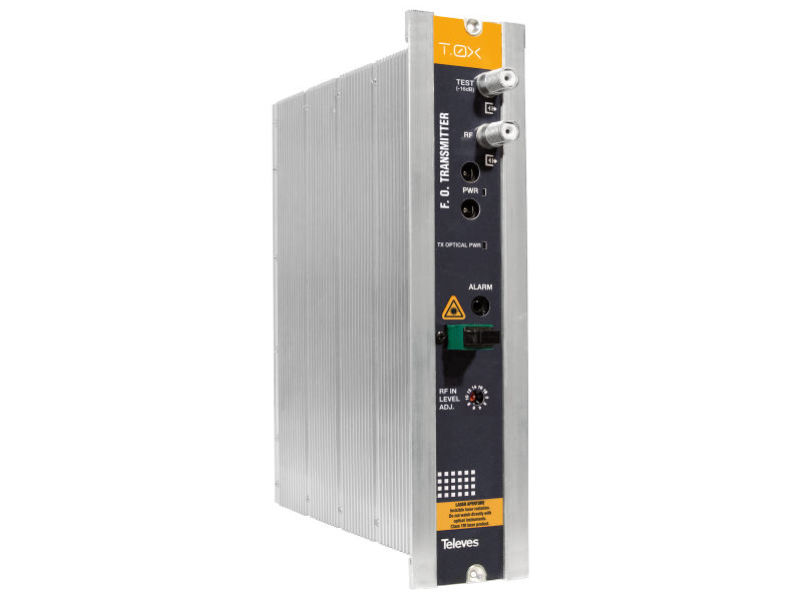

TELEVES T.0X Fibre Transmitter

Optical transmitter (without Return Path)1550 nm, Po 5 dBmProduces an optical signal in the 1550 nm-window modulated by the input RF SMATV signal (47 MHz- 2400 MHz). The optical output power is 5 dBm.Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks.HIGLIGHTSSMATV-compatible: up to 2400 MHz input bandwidthRF input level control: optimization of the optical conversion quality parametersOptical power drop alarmMAIN FEATURESVery low equivalent noise conversionEasy to install and useHigh energy efficiencySC/APC optical connectors, and F-type connectors for RFRF PARAMETERSFrequency range (MHz): 47 - 2400Flatness: 47-1200 MHz ±0.5 dB / 950-2400 MHz ±2 dBImpedance (Ohm): 75Input level: RF 73 - 93 dBμV / SAT 63 - 83 dBμVManual gain adjustment (dB): 0 ... 14 (2dB steps)C/N (dB): >51CSO (dB): >60CTB (dB): >60OPTICALLaser (type): MQW - DFBWavelength (nm): 15500 ± 10Output optical power (dBm): 5GENERALRF connectors (type): “F” femaleOptical connector: SC/APCConsumption: 12 Vdc 270 mA / 24 Vdc 155 mAOperating temperature: -5 ... +45 ºC
