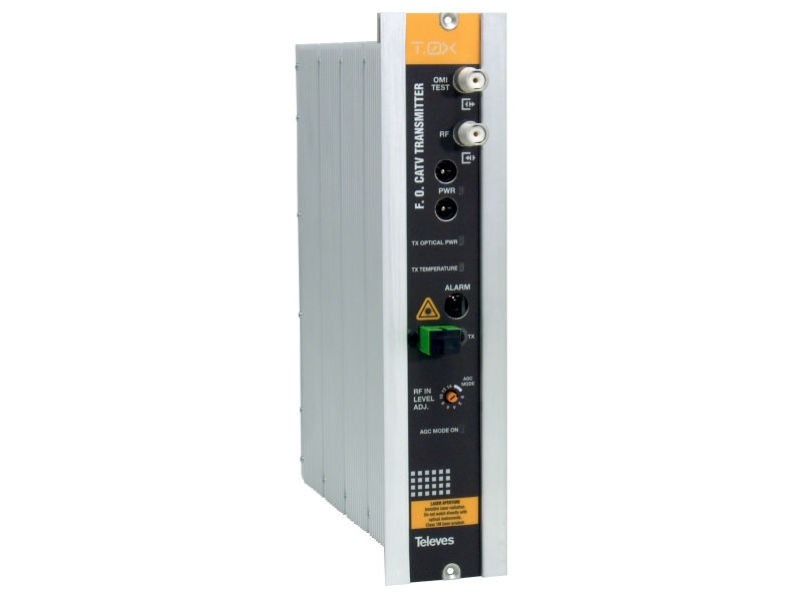

TELEVES T.0X Fibre Transmitter

CATV optical transmitter with AGC (without Return Path)1550 nm, Po 10 dBmProduces an optical signal in the 1550 nm-window modulated by the RF input signal (47 MHz - 1100 MHz). The optical output power is 10 dBm.Equipped with automatic gain control (AGC). Furthermore, it is stable in terms of temperature, thanks to the laser temperature control circuit. Perfect for RFoG solutions, and as RF Overlay transmitter on GPON networks.HIGHLIGHTSMATV-compatible: up to 1100 MHz bandwidthOMI (Optical Modulation Index) test pointOptical power and laser temperature LED indicatorsMQW-DFB refrigerated laserAGC with operation LED indicatorWide range of input power valuesOptical power drop alarmMAIN FEATURESVery low equivalent noise conversionEasy to install and useHigh energy efficiencySC/APC optical connectors, and F-type connectors for RFRF PARAMETERSRF frequency range (MHz): 47-1100RF input level (dBμV/dBmV): 90 / 30RF manual gain adjust (dB): 0 ... 14 (steps 2 dB)CAG control (dB): 15Flatness (dB): ±1CSO (CENELEC 42) note 1 (dB): 60CTB (CENELEC 42) note 1 (dB): 60OPTICALLaser (type): MQW-DFB cooledWavelength (nm): 1550 ±20Optical power (dBm): 10GENERALRF connectors (tipo): F femaleOptical connectors: SC/APCSupply voltage (Vdc): 12-24Power consumption (mA): 360-220Operation temperature: -5 … +45 ºC / 23 ... 113 ºF
