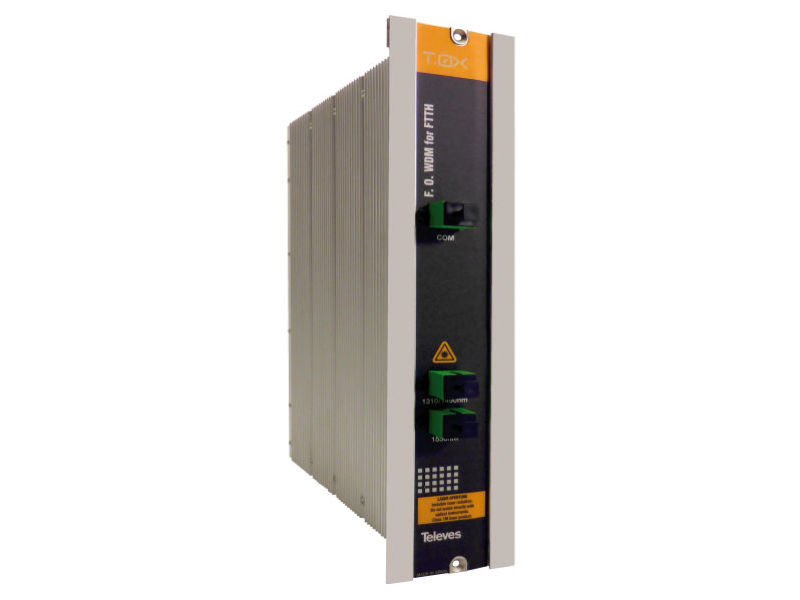

TELEVES T.0X Wavelength Multiplexer R/M

T.0X (WDM) optical multiplexer1310 nm/1490 nm - 1550 nmPassive device that multiplexes/demultiplexes two optical inputs: 1310 nm/1490 nm (GPON), and 1550 nm (RF overlay). For application on G/EPON networks.The T.0X format frame allows rack installation for optical fibre headends.MAIN FEATURESLow insertion lossSC/APC connectorsOPTICAL CHANNEL PERFORMANCEWorking wavelength (nm): 1270…1350 / 1475…1505Insertion losses (λ) 1310/1490 nm (dB): 0,5Insertion losses (λ) 1610 nm (dB): ---Insertion losses (λ) 1550 nm (dB): > 15Potencia óptica máx. (dBm): +17Working wavelength (nm): 1540…1565Insertion losses (λ) 1310/1490 nm (dB): > 25Insertion losses (λ) 1610 nm (dB): ---Insertion losses (λ) 1550 nm (dB): 0,7Potencia óptica máx. (dBm): +22GENERAL OPTICAL PERFORMANCEReturn losses (dB): > 50Directivity (dB): > 50PDL (dB): < 0,1PMd (ps): < 0,1Optical conNectors (Type): SC / APCGENERAL PERFORMANCEOperating Temp: -5 ... +45 ºC / +23 ... +113 ºFProtection index (IP): 20
