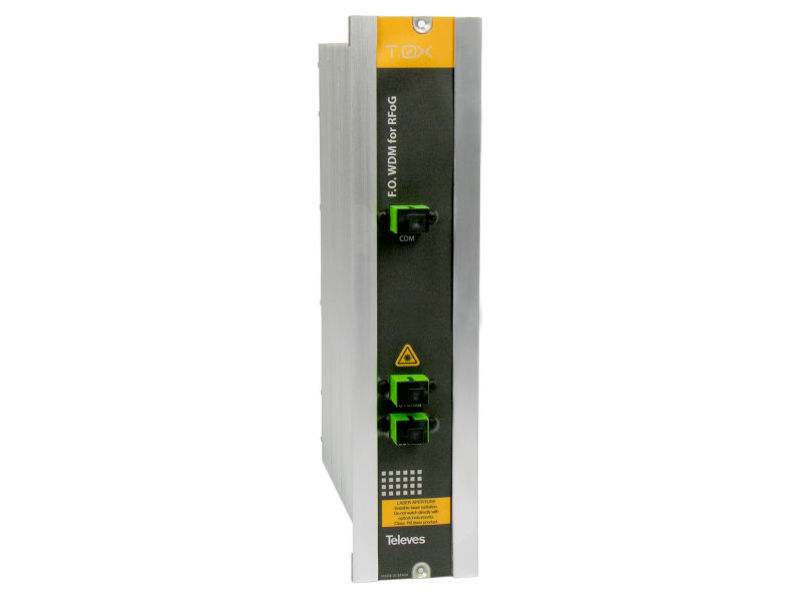

TELEVES T.0X Wavelength Multiplexer RfoG

T.0X (WDM) optical multiplexer1610 nm - 1550 nmPassive device that multiplexes/demultiplexes two optical inputs: 1610 nm (GPON), and 1550 nm (Downlink). For application in RFoG systems.The T.0X format frame allows rack installation for optical fibre headends.MAIN FEATURESLow insertion lossSC/APC connectorsOPTICAL CHANNEL PERFORMANCEWorking wavelength (nm): 1600…1620Insertion losses (λ) 1310/1490 nm (dB): ---Insertion losses (λ) 1610 nm (dB): 0,6Insertion losses (λ) 1550 nm (dB): > 13Potencia óptica máx. (dBm): +24Working wavelength (nm): 1540…1565Insertion losses (λ) 1310/1490 nm (dB): ---Insertion losses (λ) 1610 nm (dB): >30Insertion losses (λ) 1550 nm (dB): 0,4Potencia óptica máx. (dBm): +24GENERAL OPTICAL PERFORMANCEReturn losses (dB): > 50Directivity (dB): > 50PDL (dB): < 0,1PMd (ps): < 0,1Optical conNectors (Type): SC / APCGENERAL PERFORMANCEOperating Temp: -5 ... +45 ºCProtection index (IP): 20
