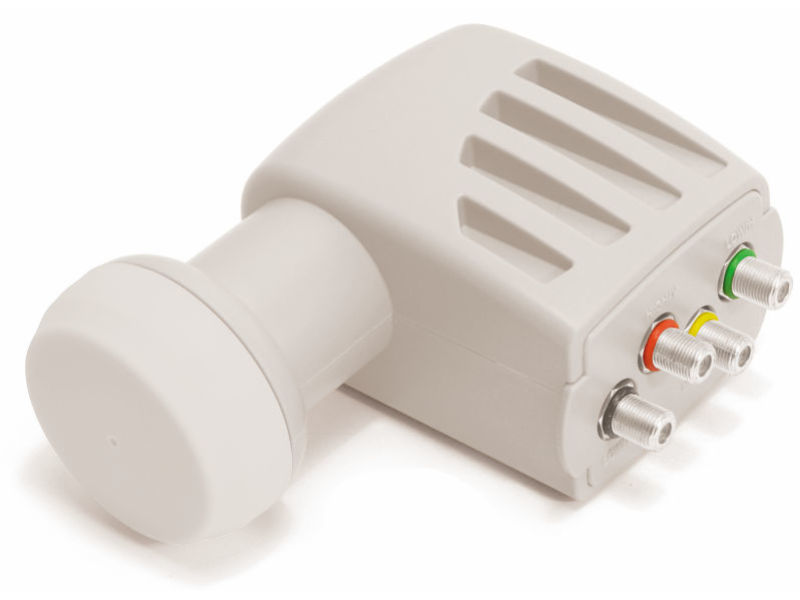

TELEVES Universal Quattro 40mm LNB Grey
SKU: 747102
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
Highlights:Low visual impact design and small casingHigh gainLow noise figureOutstanding linearity and careful equalizationHigh discrimination between polaritie
Description & specs
Highlights:Low visual impact design and small casingHigh gainLow noise figureOutstanding linearity and careful equalizationHigh discrimination between polaritiesVery high IP protection index (IP66)Can be used under extreme temperature conditionsMain Features:Light-weightCompatible with 40-mm supportsLow power consumptionPower feeding either through the receiver or the multiswitchSimple connectionMultisatellite-compatible solutionsTechnical Specifications:Connector º F femaleOutput Impedance Ω 75Powering V +12 ... 20V 210mA max.Output Frequency MHz B-I: 950 .. 1950 B-II: 1100 .. 2150Input Frequency MHz 10700 ... 12750Noise Figure dB 0,3L.O. frequency GHz O.L.1 ( 0 KHz) = 9,75O.L.2 (22 KHz) = 10,6L.O. Stability MHz ± 2Phase Noise dBc/Hz -75 max (@10 KHz)Gain dB 57 typ.Working temperature ºC -30 ... 60
