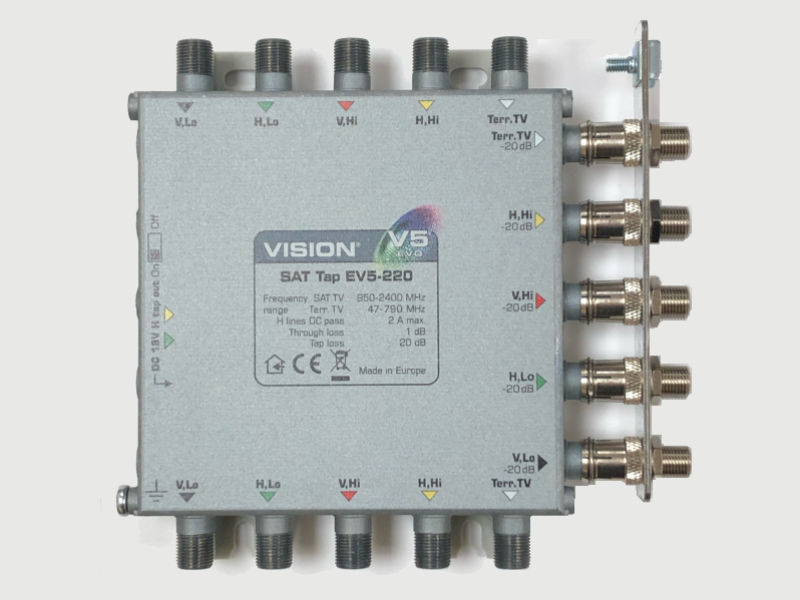

VISION EV5-220 Tap 1-Way 20dB Tap Loss EVO

The Vision EV5-220 tap attenuates the signal to the side output while minimising trunk through losses. It passes DC on the through lines at up to 2A when the current is shared across 2 of the IF lines.-20dB Tap is designed for small, medium and large IRS installations. Low insertions loss. Cable slope pre-emphasis and linearity. Allows trunk signal distribution for a 5-wire IRS.Frequency Range SAT IF: 4 x 950-2400MHzFrequency Range Terr: 4 x 5 -862MHzNumber of tap outputs: 1 x 5 tapThrough loss SAT: <1dBThrough loss Terr: <1dBTap loss SAT: 20dBTap loss Terr: 20dBInput Isolation SAT: 30dBInput Isolation Terr: 30dBReturn loss: >13dBDC through pass H lines: 2.0A max when shared across H:lo & H:hi (1A max through one line)DC through pass Terr line: 0.1A maxOperating temperature: -20°C to +50°CDimensions mm: 126x135x30Weight: 0.44kg
