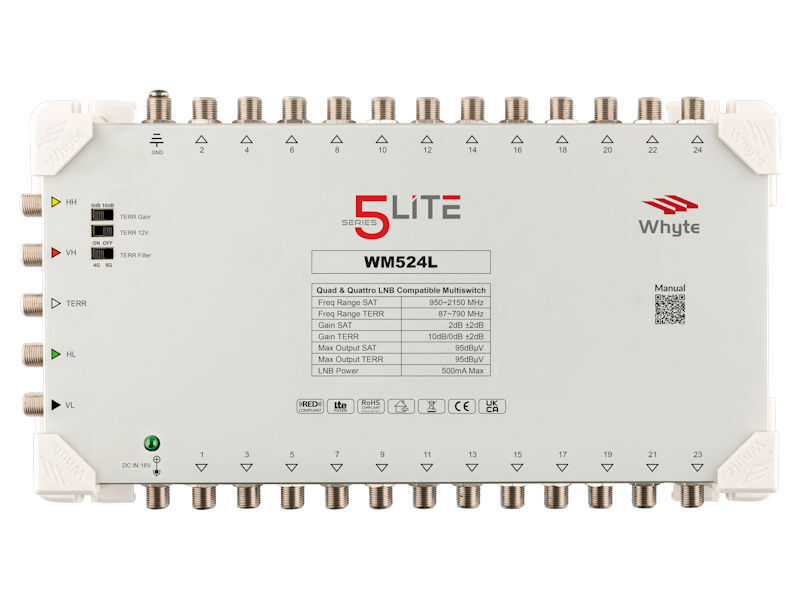

WHYTE 5 Lite Multiswitch 5x24 c/w PSU
SKU: WM524L
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
The Whyte Series 5 Lite 24-Way Standalone Multiswitch is designed for domestic installations as well as for small apartment blocks and, it is compatible with bo
Description & specs
The Whyte Series 5 Lite 24-Way Standalone Multiswitch is designed for domestic installations as well as for small apartment blocks and, it is compatible with both QUAD and QUATTRO LNB’s.Main Features:LED Power IndicatorColour Coded InputsGain SAT: 0dB / TERR: 3dBInbuilt High-Rejection LTE 4G FilterIndustry Leading Performance at a competitive priceSwitchable 12V supply to power Mast Head AmplifierAdequate Clearance to route cables under MultiswitchIncludes Separate Power Supply Unit with F-Type DC LeadHigh quality Standalone Multiswitch with 4 years warrantyComes Complete with 0.8A 18V DC Power Supply WPSU-0.8ASpecifications:Frequency Range:SAT 950-2150MHz | TERR 87-790MHz4G Filter:YESInput (F-Type Female):4 SAT + 1 TERRTap Outputs (F-Type Female):24Gain:SAT 0±2dB | TERR 3±2dBReturn Loss Trunk Input:SAT >8dB | TERR >8dBMax Output Level:SAT (IMA³ -35dB) 100dBμVTERR (IMA³ -60dB) >85dBμVIsolation:Trunk - Trunk >28dBCross Polar: ≥25dBTap-Tap SAT >25dBTap-Tap TERR >23dBRejection ≥20dBImpedance:75 OhmsSwitching Commands:Legacy 13/18V / 22kHz TonePower Supply Voltage:18V DCPowering:Via DC Input OnlyPower Consumption (Max) @18V:100mAMasthead Power Supply (Switchable):TERR Input Only 12V DC 100mA18V DC 800mA PSU (WP-0.8A):IncludedEarth Lug:Up to 6mm² CoreDimensions (mm):278 x 150 x 43Weight:726g
