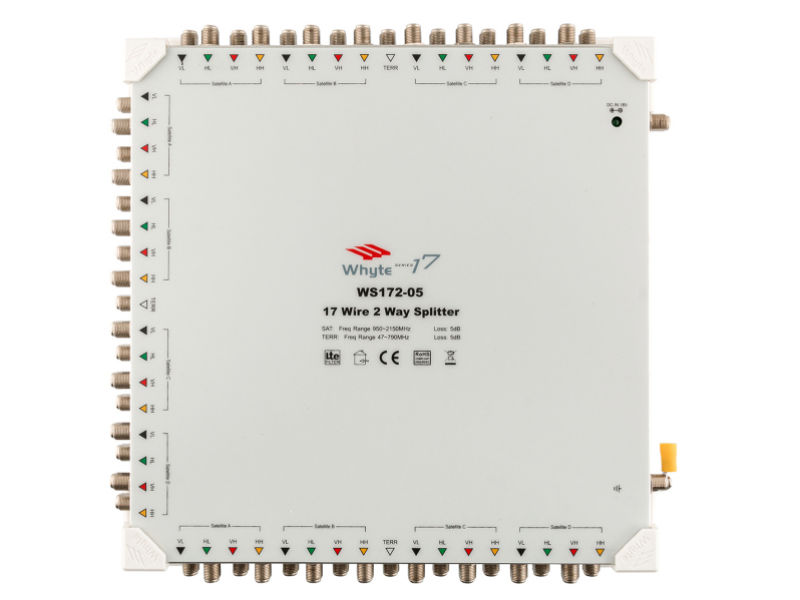

WHYTE Series 17 2 Way Splitter
SKU: WS172-05
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
The Whyte Series 17 Splitter is a passive device designed to be used with the Whyte Series 17 IRS Multiswitch Range. The WS172-05 Splitter comes with 17 F-type
Description & specs
The Whyte Series 17 Splitter is a passive device designed to be used with the Whyte Series 17 IRS Multiswitch Range. The WS172-05 Splitter comes with 17 F-type Couplers for quick & easy insertion in to a cascade of Series 17 Multiswitches.Main features:Compact size16 SAT + 1 TERR Inputs2 x 16 SAT + 1 TERR OutputsColour coded inputs & outputsLTE Filter rejects 4G interferenceGreen LED indicates DC power present18V Auxiliary Input injects power to the HL & HH trunk linesComes with 17 F-Type couplers for easy connection to Series 17 Multiswitches & AmplifiersSpecifications:Frequency: SAT: 950-2150MHz | TERR: 87-790MHzInputs (F-Type Connector): 16 SAT + 1 TERROutputs (F-Type Connector): 2× 16 SAT | 2× 1 TERRDC Input (Injection of DC applied to): SAT Trunk HL + HHDC Pass Trunk To Tap: SAT: All | TERR: NoTap Loss: SAT: 4dB±1dB | TERR: 4dB±1dBFixed Slope Tap: 4dBIsolation: >30dBMax Current Pass (Trunk/Trunk Trunk/Tap): 2APower Indication: LEDDimensions (mm): 278 x 278 x 43Weight: 1360g
