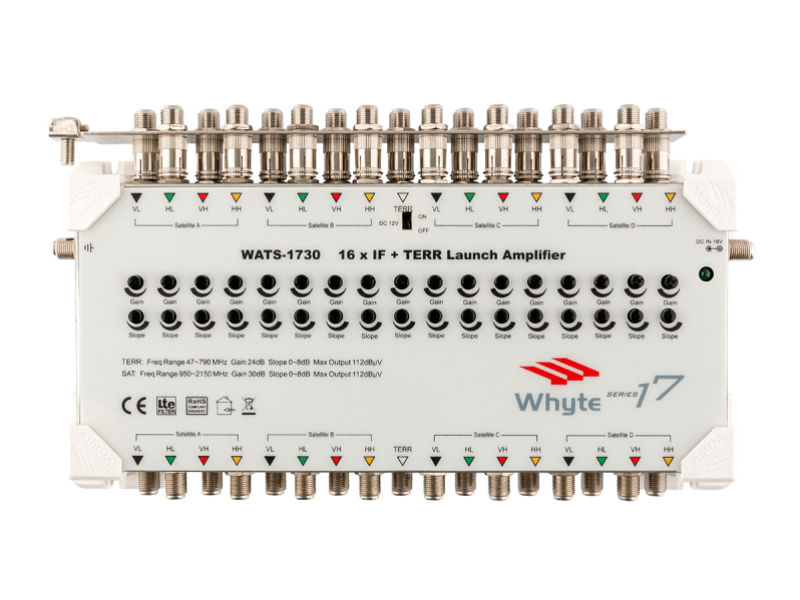

WHYTE Series 17 Launch Amp

The Whyte WATS-1730 is a 16 x SAT and 1 x Terrestrial Launch Amplifier that is compact and powerful.It may be utilised as a Launch Amplifier or as a Line Amplifier, and can be powered directly via the 18V Auxiliary Input or line powered via the HH and HL trunk lines. For ease of installation, the WATS-1730 Launch Amplifier can be connected directly to a cascade Series 17 Multiswitches using F-type couplers.Main features:Compact size16 SAT + 1 TERR InputsGain Control to all inputsSlope Control to all inputsComes with input Earth BarColour coded inputs & outputsLTE Filter rejects 4G interferenceSwitchable 12V DC Supply to Terrestrial input18V Auxiliary Input powers the amplifier & injects power to the HL & HH trunkSpecifications:Frequency: SAT 950-2150MHz | TERR 87-790MHzInputs: 16 SAT + 1 TERROutputs: 16 SAT + 1 TERRGain: SAT >30dB | TERR >24dBGain Control: SAT 15±1dB | TERR 10±1dBSlope Control: SAT 8±2dB | TERR 8±2dB4G Filter: YESTERR 12V DC Masthead Supply (switchable): 100mAInput/Output Return Loss: SAT >8dB | TERR >8dBMax Output Level SAT: SAT (IMA³ -35dB) EN50083-3 112dBμVMax Output Level TERR: TERR (IMA³ -60dB) EN50083-5 112dBμVLNB Power Supply Max: 2ASAT Trunk DC Pass: 2A MaxTERR Trunk DC Pass: NOPowering: Via DC Input | Via SAT HL + HH TrunksPower Consumption: 680mA MaxPower Indication: LEDInput Earth Bar: FittedEarth Lug: Up to 6mm² CoreDimensions Including Earth Bars (mm): 154 x 274 x 43Weight: 1054g
