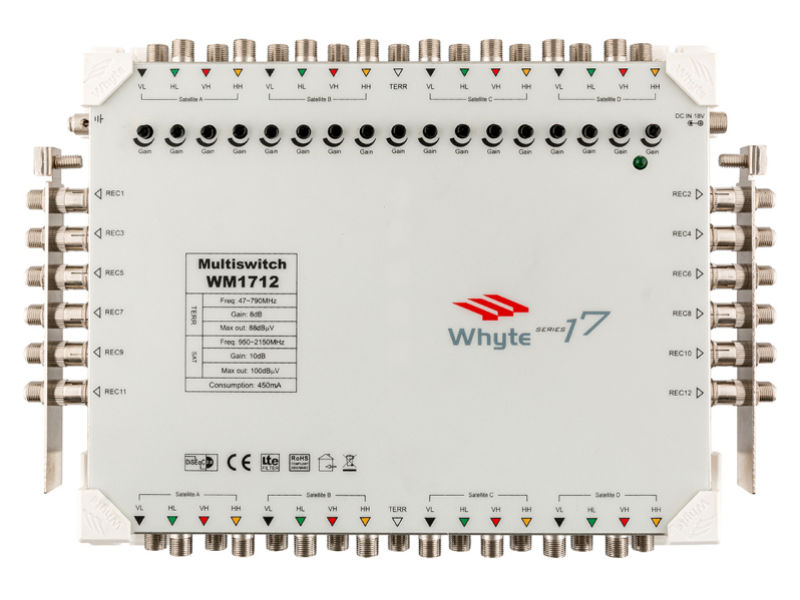

WHYTE Series 17 Multiswitch 17x12

Whyte Series 17 is a range of 17 wire Cascading Multiswitches that combines up to 4 different satellites and Terrestrial TV/Radio. Series 17 Multiswitches can be used as Standalone Multiswitches when powered directly via the 18V Auxiliary input by using a Whyte 2.5A Power Supply Unit (model WPSU-2.5A).(May require a PSU: WPSU-0.8 - WPSU-2.5)Main features:Gain Control on all inputsComes with Earth Bars fittedSAT gain 10dB / TERR gain 8dBColour coded inputs and outputsLine Powered cascading MultiswitchLED Power Indicator and LTE filterSwitchable 12V DC Supply to Terrestrial inputUse as standalone when powered with a Whyte PSUUses the receiver power to reduce demands on system PSUUse Whyte Series 17 Launch Amplifiers and Splitters to build large IRS SystemsComes with 17 F-Type couplers for easy connection to Series 17 Multiswitches, Splitters and AmplifiersSpecifications:Frequency Range: SAT 950-2150MHz | TERR 87-790MHz4G LTE Filter: YESInput (F-Type Female): 16 SAT + 1 TERRTap Outputs (F-Type Female): 12Gain: SAT: ≥10dB | TERR:≥8dBGain Control: SAT 10dB±2dB | TERR 10dB±2dBProtean Tap Attenuation: SAT & TERR 0/-10/20dBReturn Loss SAT Trunk Input/Output: SAT >10dB/>10dB | TERR >8dB/8dBReturn Loss Tap Output: >8dBMax Output Level: SAT (IMA³ -35dB) 100dBμV | TERR (IMA³ -60dB) >90dBμVIsolation: Trunk - Trunk >28dB | Cross Polar: ≥23dB | Tap-Tap SAT >25dB | Tap-Tap TERR >20dB | Rejection ≥20dBImpedance: 75 OhmsSwitching Commands: Legacy 13/18V / 22kHz Tone / DiSEqCPower Supply Voltage: 18V DCPowering: Via DC Input / Via HL and HH InputPower Consumption (Max)@18V: 450mAPower Indication: LEDTrunk Max Current Pass (per SAT line): 2AMasthead Power Supply (Switchable): TERR Input Only 12V DC 100mAEarth Terminal Bars (Tap Outputs): FittedEarth Lug: Up to 6mm² CoreDimensions Including Earth Bars (mm): 308 x 224 x 43Weight: 1448g
