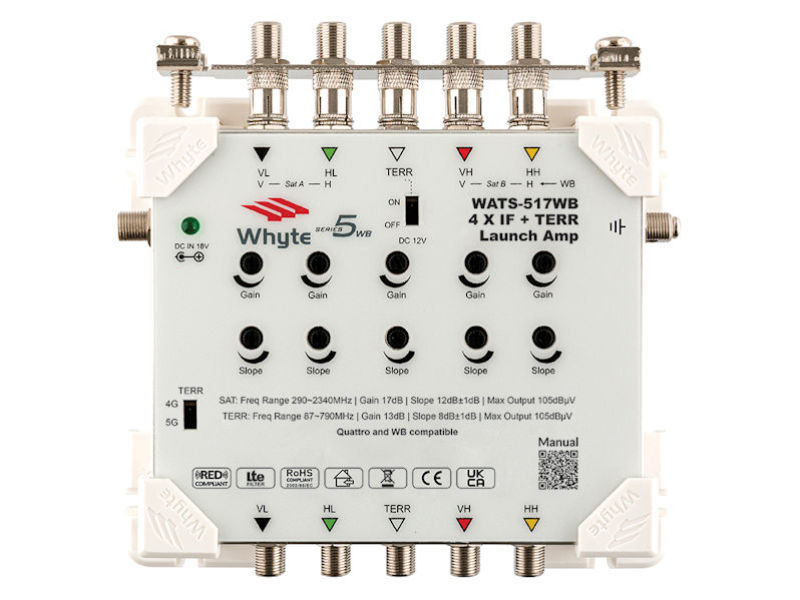

WHYTE Series 5 Launch Amp also Wide Band

The Whyte Series 5 WB Launch Amplifier is a 5 wire Satellite and Terrestrial IRS Launch Amplifier with the option of Quattro or Dual Wideband LNB input.The Whyte WATS-517WB Series 5 WB Launch Amplifiers may be used for conventional IRS distribution (Quattro LNB) or as part of Wideband IRS System (WB LNB) where up to two wideband LNB’s can be connected to the input.The Whyte WB Amplifier range can be used as Launch Amplifiers or Line Amplifiers thanks to their flexible powering options.Powerful 4G/5G filtering provides ultra-high rejection of LTE interference.Main Features:4G/5G FilterRED compliant4 Years WarrantyGain control on all inputsSlope control on all inputsComes with input earth barColour coded inputs and outputsSwitchable 12V DC Supply to Terrestrial Input18V Auxiliary Input injects power to all SAT linesCan be powered via any/all SAT inputs or outputsSAT gain >17dB / TERR gain >13dB (WATS-517WB)Specifications:Frequency:SAT 290-2340MHzTERR 87-790MHzInputs:4 SAT + 1 TERROutputs:4 SAT + 1 TERRGain:SAT >17dBTERR >13dBGain Control:SAT 10dB ±1dBTERR 10dB ±1dBSlope Control:SAT 12dB ±1dBTERR 8dB ±1dB4G/5G Switchable Filter:YESTERR 12V DC Masthead Supply (switchable):100mAInput/Output Return Loss:SAT >8dBTERR >8dBMax Output Level SAT:SAT (IMA³ -35dB) EN50083-3 105dBμVMax Output Level TERR:TERR (IMA³ -60dB) EN50083-5 105dBμVLNB Power Supply Max:2ASAT Trunk DC Pass:YES 2A MaxTERR Trunk DC Pass:NOPowering:Via DC InputVia SAT TrunksPower Consumption:150mA MaxDimensions Including Earht Bars (mm):158 x 150 x 43Weight:470g
