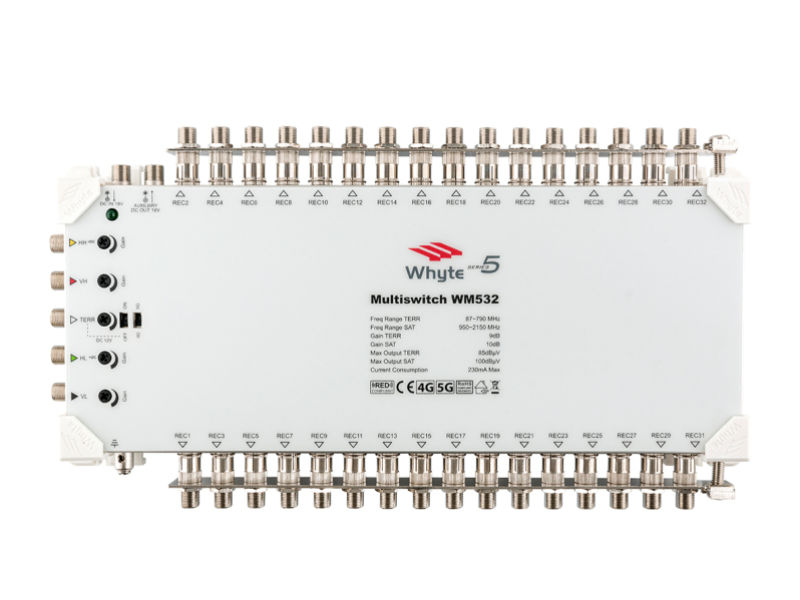

WHYTE Series 5 Multiswitch 5x32

The Whyte Series 5 Multiswitch range is universally flexible and is designed to be used in small, medium to large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as Standalone Multiswitches when powered directly via the18V Auxiliary Input by using a Whyte 0.8A Power Supply Unit (model WPSU-0.8A).Main Features:Inbuilt LTE filterLED power indicatorLine Powered MultiswitchGain Control on all inputsComes with Earth Bars fittedSAT gain 10dB / TERR gain 8dBColour coded inputs and outputsUse as standalone when powered with a Whyte PSUUses the receiver power to reduce demands on system PSUAdequate clearance to route cables under the MultiswitchUse Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS SystemsSpecifications:Frequency Range:SAT 950-2150MHz | TERR 87-790MHz4G/5G Switch:YESInput (F-Type Female):4 SAT + 1 TERRTap Outputs (F-Type Female):32Gain:SAT: ≥10dB | TERR:≥8dBGain Control:SAT 11dB±2dB | TERR 11dB±2dBReturn Loss SAT Trunk Input/Output:SAT >10dB/>10dBTERR >8dB/8dBReturn Loss Tap Output:>8dBMax Output Level:SAT (IMA³ -35dB) 100dBμVTERR (IMA³ -60dB) >85dBμVIsolation:Trunk - Trunk >33dBCross Polar: ≥25dBTap-Tap SAT >30dBTap-Tap TERR >30dBRejection ≥25dBImpedance:75 OhmsSwitching Commands:Legacy 13/18V / 22kHz TonePower Supply Voltage:18V DCPowering:Via DC Input / Via HL and HH InputAuxiliary DC Output (F-Type Female:YESPower Consumption (Max)@18V:230mAMasthead Power Supply (Switchable):TERR Input Only 12V DC 100mAEarth Terminal Bars (Tap Outputs):FittedEarth Lug:Up to 6mm² CoreDimensions Incuding Earth Bars (mm):342 x 182 x 43Weight:1512g
