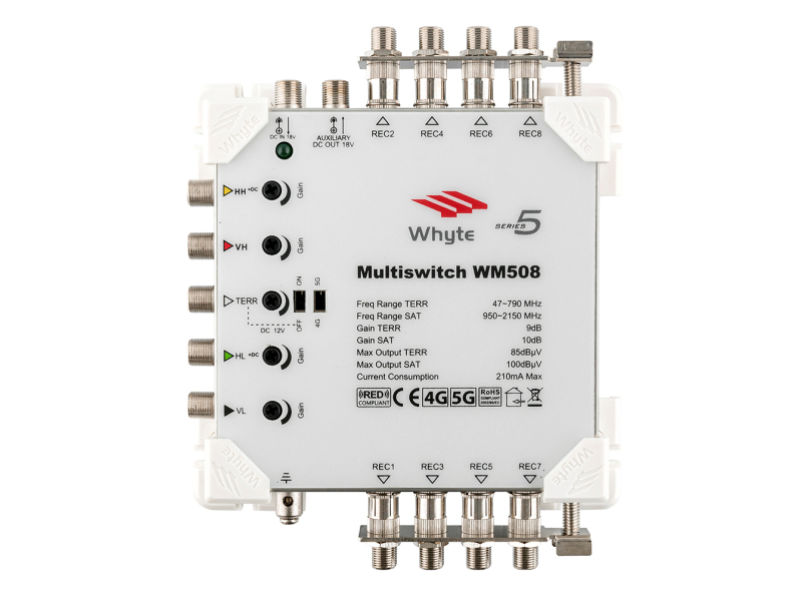

WHYTE Series 5 Multiswitch 5x8

The Whyte Series 5 Multiswitch range is designed to be universally flexible and can be used in small, medium and large Integrated Reception Systems (IRS). Whyte Multiswitches can be used as a standalone Multiswitch when powered directly via the 18V Auxiliary Input by using the Whyte 0.8A Power Supply Unit (model WPSU-0.8A).Main Features:Inbuilt LTE filterLED power indicatorLine Powered MultiswitchGain Control on all inputsComes with Earth Bars fittedSAT gain 10dB / TERR gain 8dBColour coded inputs and outputsUse as standalone when powered with a Whyte PSUUses the receiver power to reduce demands on system PSUAdequate clearance to route cables under the MultiswitchUse Whyte Series 5 Launch Amplifiers and Taps/Splitters to build large capacity IRS SystemsSpecifications:Frequency Range:SAT 950-2150MHz | TERR 87-790MHz4G/5G Switch:YESInput (F-Type Female):4 SAT + 1 TERRTap Outputs (F-Type Female):8Gain:SAT: ≥10dB | TERR:≥8dBGain Control:SAT 11dB±2dB | TERR 11dB±2dBReturn Loss SAT Trunk Input/Output:SAT >10dB/>10dBTERR >8dB/8dBReturn Loss Tap Output:>8dBMax Output Level:SAT (IMA³ -35dB) 100dBμVTERR (IMA³ -60dB) >85dBμVIsolation:Trunk - Trunk >33dBCross Polar: ≥25dBTap-Tap SAT >30dBTap-Tap TERR >30dBRejection ≥25dBImpedance:75 OhmsSwitching Commands:Legacy 13/18V / 22kHz TonePower Supply Voltage:18V DCPowering:Via DC Input / Via HL and HH InputAuxiliary DC Output (F-Type Female:YESPower Consumption (Max)@18V:210mAMasthead Power Supply (Switchable):TERR Input Only 12V DC 100mAEarth Terminal Bars (Tap Outputs):FittedEarth Lug:Up to 6mm² CoreDimensions Incuding Earth Bars (mm):150 x 182 x 43Weight:674g
