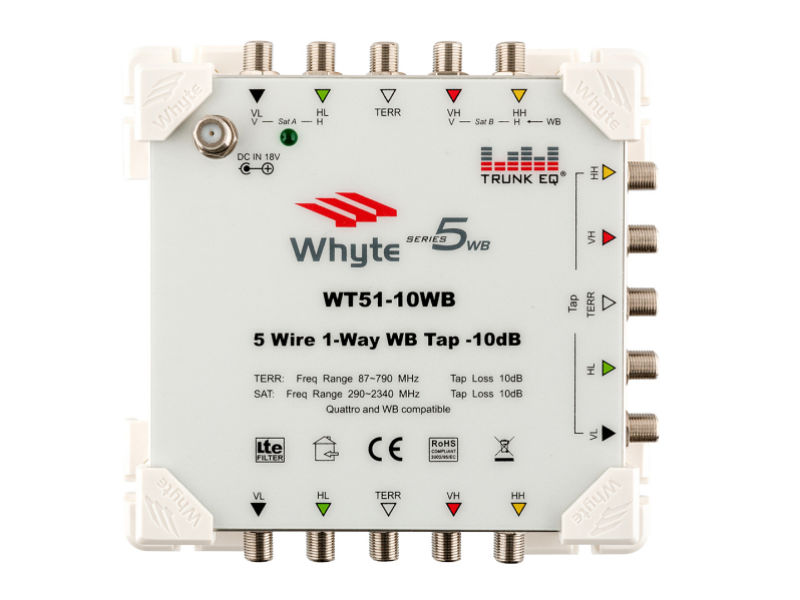

WHYTE Series 5 Wideband 1 Way 10dB Tap WB
SKU: WT51-10WB
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
The Whyte Series 5 WB WT51-10WB 10dB 1-Way Tap features our intelligent trunk equalisation technology Trunk EQ for flat trunk output. This industry first enable
Description & specs
The Whyte Series 5 WB WT51-10WB 10dB 1-Way Tap features our intelligent trunk equalisation technology Trunk EQ for flat trunk output. This industry first enables longer cascades to be created for Quattro or Wideband IRS distribution systems.Main Features:Features Trunk EQInbuilt LTE filterLED power indicatorColour coded inputs and outputsTap outputs on top of unit for easy accessAuxiliary 18V Input injects power to SAT linesSpecifications:Frequency:SAT: 290-2340MHzTERR: 87-790MHzInputs (F-Type Connector):4 SAT + 1 TERROutputs (F-Type Connector):2× 4 SAT2× 1 TERRDC Input (Injection of DC applied to):All SAT Trunk and TapDC Pass Trunk To Tap:SAT: AllTERR: NoDC Pass Trunk to Trunk:SAT: YesTERR: NoTrunk Through Loss:SAT: 2dB±1TERR: 2dB±1Tap Loss:SAT: 10dBTERR: 10dBFixed Slope Tap:YESTrunk EQ:YESIsolation:>30dBMax Current Pass (Trunk/Trunk Trunk/Tap):2APower Indication:LEDDimensions (mm):156 x 150 x 43Weight:360g
