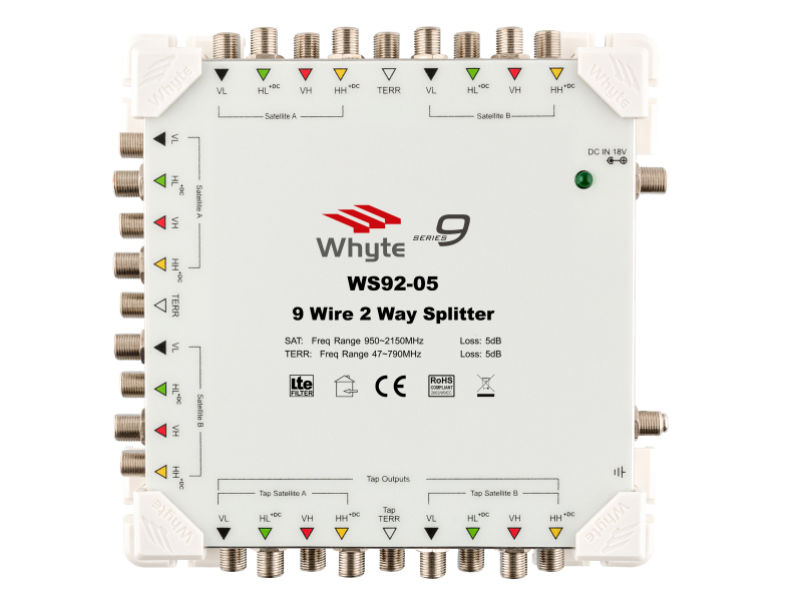

WHYTE Series 9 2 Way Splitter
SKU: WS92-05
Trade price hidden
Prices are reserved for approved trade accounts. Register and we'll unlock the full catalogue pricing.
The Whyte Series 9 Splitter is a passive device designed to be used with Whyte Series 9 IRS Multiswitch Range. The WS92-05 Splitter comes with 9 F-Type Couplers
Description & specs
The Whyte Series 9 Splitter is a passive device designed to be used with Whyte Series 9 IRS Multiswitch Range. The WS92-05 Splitter comes with 9 F-Type Couplers for quick & easy insertion in to a cascade of Series 9 Multiswitches.Main features:Compact size8 SAT + 1 TERR Inputs2 x 8 SAT + 1 TERR OutputsColour coded inputs & outputsLTE Filter rejects 4G interferenceGreen LED indicates DC power present18V Auxiliary Input injects power to the HL & HH trunk linesComes with 9 F-Type couplers for easy connection to all Series 9 productsSpecification:Frequency: SAT: 950-2150MHz | TERR: 87-790MHzInputs (F-Type Connector): 8 SAT + 1 TERROutputs (F-Type Connector): 2× 8 SAT | 2× 1 TERRDC Input (Injection of DC applied to): SAT Trunk HL + HHDC Pass Trunk To Tap: SAT: All | TERR: NoTap Loss: SAT: 4dB±1dB | TERR: 4dB±1dBFixed Slope Tap: 4dBIsolation: >30dBMax Current Pass (Trunk/Trunk Trunk/Tap): 2APower Indication: LEDDimensions (mm): 175 x 175 x 43Weight: 600g
