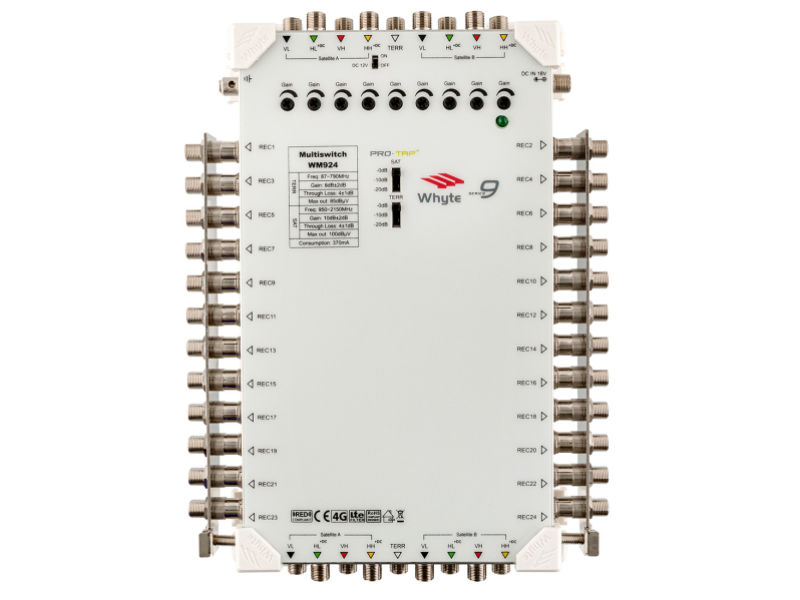

WHYTE Series 9 Multiswitch 9x24

The Series 9 24-Way Standalone Multiswitch is is 9 wire line powered Cascading Multiswitch. It comes fitted with Pro-Tap Technology which enables the installer to easily select input tap losses of 0-10 or -20dB whilst maintaining a trunk through loss of only 4dB.Main features:Gain Control on all inputsComes with earth bars fittedSAT Gain 10dB / TERR Gain 8dBColour coded inputs & outputsLine Powered cascading MultiswitchSwitchable 12V DC Supply to Terr InputLED Power indicator & Inbuilt LTE filterUses receiver power to reduce demands on PSUUse As standalone when powered with a Whyte PSUSeparate SAT & TERR Pro-Taps for ease of installationComes with 9 F-Type couplers for easy connection to all Series 9 productsUse Whyte Series 9 Launch Amplifiers & Splitters to build large scale IRS SystemsSpecifications:Frequency Range: SAT 950-2150MHz | TERR 87-790MHz4G LTE Filter: YESInput (F-Type Female): 8 SAT + 1 TERRTap Outputs (F-Type Female): 24Gain: SAT: ≥10dB | TERR:≥8dBGain Control: SAT 10dB±2dB | TERR 10dB±2dBProtean Tap Attenuation: SAT & TERR 0/-10/20dBReturn Loss SAT Trunk Input/Output: SAT >10dB/>10dB | TERR >8dB/8dBReturn Loss Tap Output: >8dBMax Output Level: SAT (IMA³ -35dB) 95dBμV | TERR (IMA³ -60dB) >85dBμVIsolation: Trunk - Trunk >28dB | Cross Polar: ≥25dB | Tap-Tap SAT >25dB | Tap-Tap TERR >21dB | Rejection ≥20dBImpedance: 75 OhmsSwitching Commands: Legacy 13/18V / 22kHz Tone / DiSEqCPower Supply Voltage: 18V DCPowering: Via DC Input / Via HL and HH InputPower Consumption (Max)@18V: 330mAPower Indication: LEDTrunk Max Current Pass (per SAT line): 2AMasthead Power Supply (Switchable): TERR Input Only 12V DC 100mAEarth Terminal Bars (Tap Outputs): FittedEarth Lug: Up to 6mm² CoreDimensions Including Earth Bars (mm): 208 x 278 x 43Weight: 1412g
