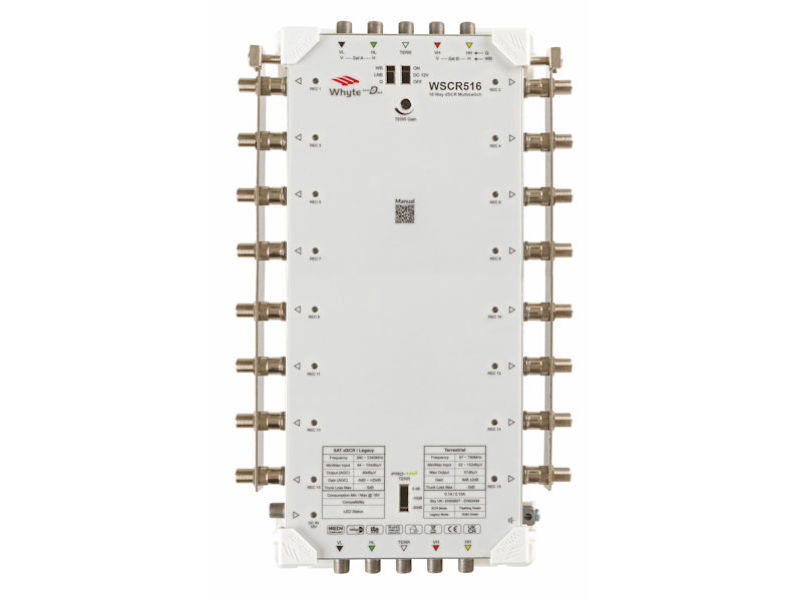

WHYTE Series D 16 Way dSCR Multiswitch

Advanced Cascadable 16 way dSCR Multiswitches enable seamless integration with conventional IRS Systems due to extremely low power consumption, low loss passive trunks and high gain Terrestrial, make the new Series D range from Whyte the most versatile and easy to install dSCR Multiswitch range available. Each subscriber output provides SkyQ, Legacy, TV and Radio. Satellite subscriber signal levels in both Legacy and dSCR mode are automatically set to 85dBμV. Terrestrial signal levels are controlled via a manual Gain Control knob and a selectable Protean Tap which permits a wide range of TERR input signal levels from 50 to 108dBμV. The reception of 2 satellites can easily be achieved by utilising 2 Wideband LNB’s and switching the unit to Wideband LNB mode. The unit can be powered directly via the DC input port or be remotely powered via the trunk lines.Main Features:Inbuilt LTE filterComes with Earth Bars fittedUncomplicated DC powering optionSwitchable 12V DC supply to TERR inputCompatible with Quattro and Wideband LNB’sEasy integration with conventional IRS systemsHigh Gain TERR with Gain Control and Protean TapExtremely low power consumption eg. WSCR504 (Min/ Max) 0.1A/0.28ABalanced dSCR and Legacy output signal levels (AGC) for easy system planningQuattro LNB for single satellite 5 Wire system or 2 Wideband LNB’s for 2 Sat receptionSpecifications:Frequency RangeSAT Wideband290-2340MHz SAT Quattro950-2150MHz TERR87-790MHzDual Satellite ReceptionSAT Wideband (2x WB LNB)YESTrunk Inputs (F-Type Female) 4 SAT + 1 TERRTrunk Outputs (F-Type Female) 4 SAT + 1 TERRTap Outputs (F-Type Female) 16GainSAT-5dB ~ +25dB (AGC) TERR8dB ±2dBGain ControlSATAGC TERR15dBInput Levels Min / MaxSAT64 ~ 104dBμV TERR52 ~ 102dBμVTrunk Through LossSAT<-5dB TERR<-5dBReturn LossSAT Trunk Input / Output>10dB / >10dB TERR Trunk Input / Output>8dB / >8dB Tap Output>8dBMax Output LevelSAT89dBμV (AGC) TERR87dBμVProtean Tap™ (A ttenuation Switch)TERR0 / -10 / -20dBIsolationTrunk Port to Port>36dB Tap Port to Port>43dBTrunk DC PassSAT (per trunk)YES (2A Max) TERRNOImpedance 75ΩCompatibility (Auto Switching) Legacy SKY UK dSCR EN50607 EN50494Switching CommandsLegacy13/18V / 22kHz / DiSEqC dSCRDiSEqCdSCR/Legacy Mode Indication (per port) LED (dSCR Flash)Power Supply Voltage 18V DCPoweringVia DC InYES Via SAT TrunksYES Via ApartmentNOPower Consumption Min / Max @ 18V 0.1A / 0.15APower Indication LEDMasthead Supply (switchable)TERR Input Only12V DC 100mAEarth Terminal Bars (Tap Outputs) FittedEarth Lug Up to 6mm² coreDimensions including Earth Bars W x L x H (mm) 190 x 318 x 43Weight 1300g
