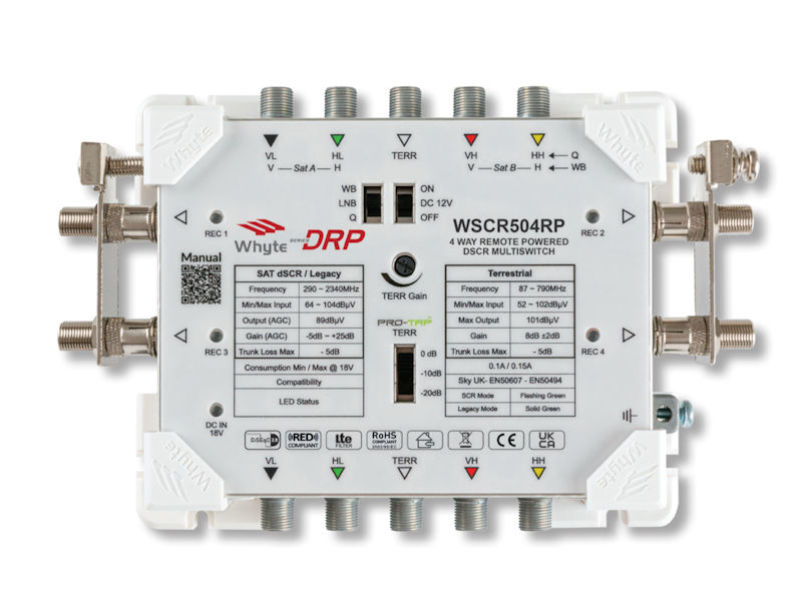

WHYTE Series D 4 Way dSCR Multiswitch RP

The Whyte WSCR504RP is a remote powered dSCR multiswitch designed specifically for installations where no landlords power is available. The WSCR504RP retains all the features and performance of the conventional Series D range of dSCR multiswitches. These performance features easily facilitate the cascading of several units due the low loss trunks, TERR gain control and Pro-Tap.Each subscriber output provides SkyQ, Legacy SAT, TV and Radio Services. Satellite subscriber signal levels in both Legacy and dSCR mode are automatically set to 89dBμV via AGC.The power is provided remotely via the REC port which powers only that particular port, the trunk and any amplifier, legacy multiswitch or LNB connected. The WSCR504RP can not be powered via the trunk therefore any additional WSCR504RP’s within the system will not be powered and added to the load. This ensures that no individual apartment will experience apartment PSU overload.When used with the WPSU-SAP1/SAP2 Smart Apart PSU’s from Whyte, customer support is reduced and customer satisfaction is increased as the IRS system will function correctly irrespective of building occupancy or type of set-top-box (if any) used by the resident.Main Features:Small Form FactorFeatures Trunk EQComes complete with Earth BarsRemote Powered dSCR Multiswitch2 SAT Reception using 2x WB LNB’sSwitchable 12V supply on TERR inputCompatible with Quattro and WB LNB’sHigh Output Power 89dBμV (AGC) for Legacy / dSCRHigh Gain TERR with Gain Control & Pro-Tap™ Attenuation SwitchSpecifications:Frequency Range SAT Quattro Wideband:950 ~ 2150 / 290 ~ 2340MHzFrequency Range TERR:87~790MHzDual Satellite Reception (2x WB LNB):YESTrunk Inputs /Outputs (F-Type Female):4 SAT + 1 TERRTap Outputs (F-Type Female):4Gain SAT:-5dB ~ +25dB (AGC)Gain TERR:-5dB ~ +25dB (AGC)Gain Control TERR / SAT:15dB / AGCInput Levels Min / Max ~ SAT / TERR:64 ~ 104dBμV / 52 ~ 102dBμVTrunk Through Loss SAT / TERR:<-5dBMax Output Level SAT / TERR:89dBμV (AGC) / 101dBμVProtean Tap™ (TERR Attenuation Switch):0 / -10 / -20dBImpedance:75ΩCompatibility (Auto Switching):Legacy / Sky UK /EN50607 / EN50494dSCR User Bands Per Port:16Masthead Supply (switchable):12V DC 100mAPower Consumption Min / Max @ 18V:0.1A / 0.28ASupply voltage:18V DCPower via Apartment / Via Trunk:Yes / No
