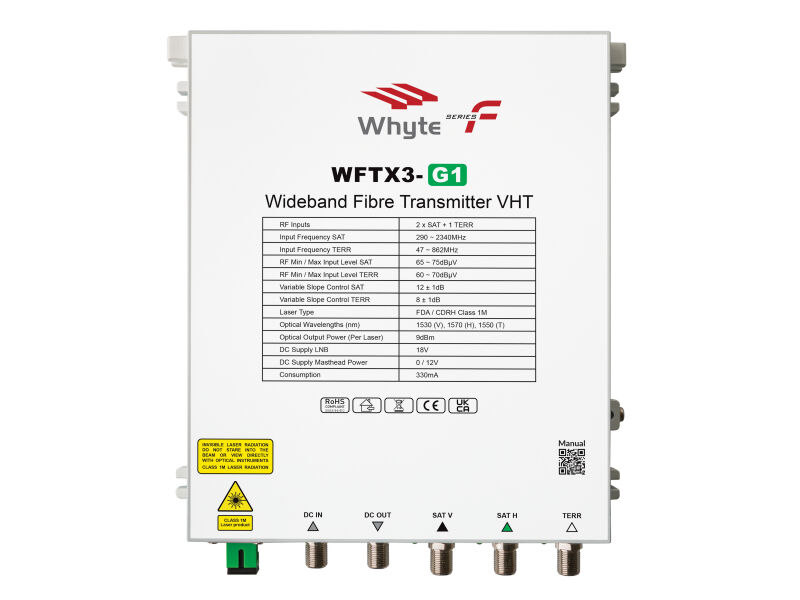

WHYTE Series F Optical Transmitter VHT

4 Year WarrantySingle laser per InputWideband SAT InputFull band TERR InputVariable Slope ControlRF and Laser IndicatorsMultiple mounting optionsUltra Low MER Degradation <0.2dBSatellite and Terrestrial Optical Transmitter9dBm Optical Power supporting 64-Way splitThe Whyte WFTX range of Optical Fibre Transmitters offer an efficient quality solution for Fibre IRS systems.Whyte Optical Transmitters utilise a single laser per input which are multiplexed (CWDM) for a single optical output. This configuration ensures minimum signal degradation. The V and H SAT inputs are compatible with all Wideband LNBs and will accept any signals within the 290~2340MHz range. The TERR input 47 ~ 862MHz supports FM, DAB and DTT. The WFTX3-G1 features DC in and DC Output, Laser On/Off switches for V, H & TERR, Variable Slope Control for V, H and TERR and Masthead Power switch for enabling/disabling 12V DC at the TERR RF input. The WFTX3-G1 is a three-laser CWDM device.Dual wideband satellites can be supported using the loop-in loop-out function (two transmitters) WFTX3-G1 and WFTX2-G2 and their matching receivers. Where a Quattro LNB source is required, Transmitters and Receivers are also used in pairs via their optical loop-in loop-out connectivity. Each individual path is supported by Variable Slope Control (VSC) and can be adjusted to present the flattest output for your Fibre IRS system.When combined with other products from the Whyte Series F range, large scale FTTH (Fibre To The Home), FTTC (Fibre To The Cabinet) and FTTB (Fibre To The Block) Fibre IRS systems can be successfully implemented.
